Clock Edge Trigger Type Positive Edge
Frequency 150 MHz
Maximum Operating Temperature 85 °C
Max Supply Voltage 3.6 V
Min Operating Temperature -40 °C
Min Supply Voltage 2.7 V
Number of Pins 20
Output Current 128 mA
Propagation Delay 4.3 ns
REACH SVHC No SVHC
RoHS Compliant
Win Source Part Number 1040634-74LVT574BQ
Categories Logic - Flip Flops
Manufacturer NXP
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 74LVT574BQ CAD Model

Description

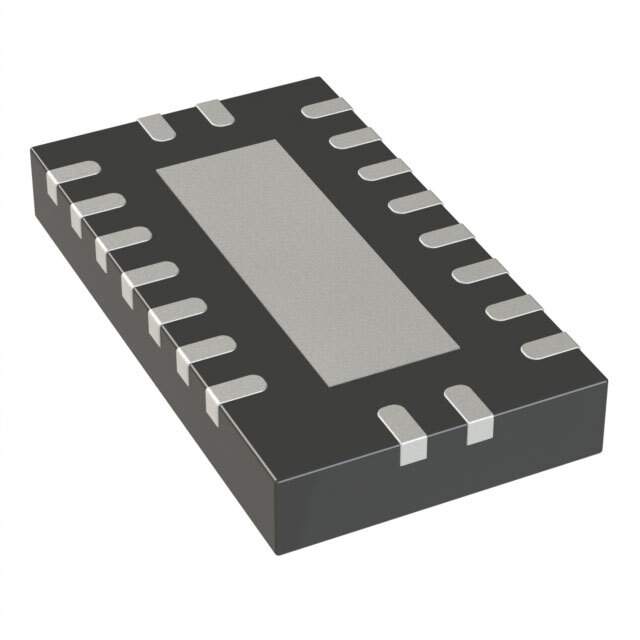

NXP 74LVT574BQ Octal D-Type Flip-Flop

The NXP 74LVT574BQ is a high-performance, octal edge-triggered D-type flip-flop integrated circuit, part of the LVT family, designed for use in applications that require high-speed data storage and transfer. This device is particularly well-suited for use in bus-oriented systems thanks to its high-speed and low-power consumption.

Key Features:

  • Logic Type: Octal D-Type Flip-Flop
  • Operating Voltage: 2.7V to 3.6V, optimized for 3.3V operation
  • High-Speed Performance: Capable of operating at frequencies up to 250 MHz
  • Low Power Dissipation: ICC = 4 µA (max) at TA = 25°C
  • 3-State Outputs: For bus-oriented applications
  • Edge-triggered: Captures data on the rising edge of the clock
  • Output Capability: Capable of driving 50 Ω transmission lines
  • Multiple Package Options: Available in DHVQFN20 package
  • Lead-Free and RoHS Compliant: Environmentally friendly with reduced hazardous substances

Product Applications:

The 74LVT574BQ is ideal for a range of applications that require high-speed data transfer and storage. This includes, but is not limited to:

  • Telecommunication systems
  • Computers and computer peripherals
  • Data storage systems
  • High-speed data acquisition systems
  • Networking equipment

Technical Specifications:

The device operates with a clock input (CP) and an output enable (OE) input. All flip-flops are simultaneously triggered on the low-to-high transition of the clock input. Meanwhile, the OE input can disable the outputs by forcing them into a high impedance state, thus allowing for bus sharing.

With its advanced silicon gate CMOS technology, the 74LVT574BQ offers superior performance while maintaining low power consumption. The device's balanced propagation delays and transition times further contribute to its reliability and efficiency in fast-paced, data-intensive environments.

For those looking to incorporate the NXP 74LVT574BQ into their designs, it's important to consider the technical documentation provided by NXP for detailed electrical characteristics and installation guidelines.
