Product Overview: 74LVT16244BDG-T from NXP

The 74LVT16244BDG-T is a high-performance, low-voltage BiCMOS product designed by NXP Semiconductors. This device is part of the LVT series, which is renowned for its low-voltage operation and tolerance to higher voltages, making it suitable for interfacing with 5V systems while maintaining the low power dissipation of 3.3V systems. The 74LVT16244BDG-T is a 16-bit buffer and line driver with 3-state outputs, which makes it ideal for driving bus lines or buffer memory address registers.

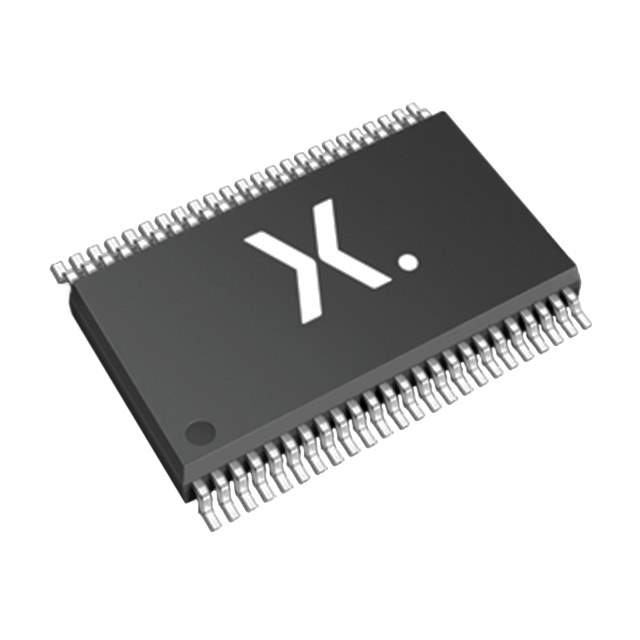

This integrated circuit provides high-speed performance while operating from a 3.3V supply, with 5V tolerant I/Os ensuring compatibility with mixed-voltage environments. With its edge rate control feature, the device is designed to minimize the propagation of noise and ringing, thus providing improved signal integrity on the bus lines. The 74LVT16244BDG-T is packaged in a 48-pin TSSOP (Thin Shrink Small Outline Package), which is beneficial for space-constrained applications.

The device features a broad operating temperature range, typically from -40°C to +85°C, making it suitable for industrial applications that require reliable performance under varying environmental conditions. Additionally, the 74LVT16244BDG-T supports a maximum data rate, which is a testament to its ability to handle high-speed data transmission with ease.

Key features of the 74LVT16244BDG-T include:

• 16-bit high-speed buffer/line driver with 3-state outputs
• Low-voltage operation of 3.3V with 5V tolerant inputs/outputs
• Edge rate control circuitry for noise reduction
• High drive capability
• Power-down protection on inputs and outputs
• 48-pin TSSOP package for space-saving installations
• Wide operating temperature range suitable for industrial applications
• Compliance with JEDEC standard no. 8-1A

Applications for the 74LVT16244BDG-T are diverse, including telecommunications, computing, and high-speed data processing where reliable high-speed data buffering and driving are required. Its robust design and advanced features ensure that it can meet the stringent requirements of modern electronic systems. Whether you are designing a new system or upgrading an existing one, the 74LVT16244BDG-T by NXP Semiconductors is a reliable choice for ensuring data integrity and high-speed performance.
