Product Overview: 74LVC374ADB118

The 74LVC374ADB118 is a high-performance, octal D-type flip-flop with 3-state outputs from NXP Semiconductors. Designed for use in applications that require the capture and storage of data, this integrated circuit (IC) is part of the LVC family, which signifies its Low-Voltage CMOS technology. This technology ensures that the device operates at a lower voltage with less power consumption, making it an ideal choice for battery-operated and power-sensitive applications.

Key Features

• Logic Type: Octal D-type flip-flop with positive edge-trigger and 3-state outputs.
• Supply Voltage Range: 1.2V to 3.6V, allowing for use in low-voltage applications and compatibility with various logic levels.
• High-Speed Performance: Capable of operation at frequencies up to 100 MHz (at 3.3V), suitable for high-speed data processing tasks.
• Low Power Dissipation: Reduced power consumption due to the LVC technology, which minimizes the power required for operation.
• Output Capability: Capable of driving up to 24 mA at the outputs, providing sufficient current for most logic interfacing requirements.
• Logic Level Translation: Ability to translate between different logic levels, making it suitable for interfacing between systems operating at different voltages.

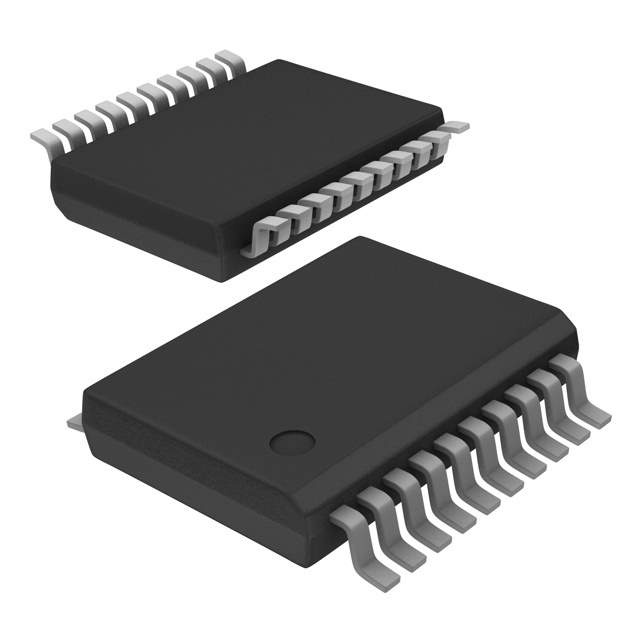

• Package Type: DB, a plastic small outline package with 20 pins, providing a compact footprint for space-constrained applications.

Applications

The 74LVC374ADB118 is versatile and can be used in a wide range of applications, including:

• Data storage and transfer in computer systems.
• Buffering data for digital signal processing.
• Interface and bus driver applications where level shifting is required.
• Communication systems that require stable data retention.

Quality and Reliability

As with all NXP products, the 74LVC374ADB118 is manufactured to high-quality standards, ensuring reliability and performance in demanding conditions. It is designed to meet the rigorous requirements of industrial and commercial applications, providing both durability and consistent operation.

In summary, the 74LVC374ADB118 from NXP is a powerful and reliable component for your digital logic needs, offering low-voltage operation, high-speed performance, and logic level translation in a compact package.
