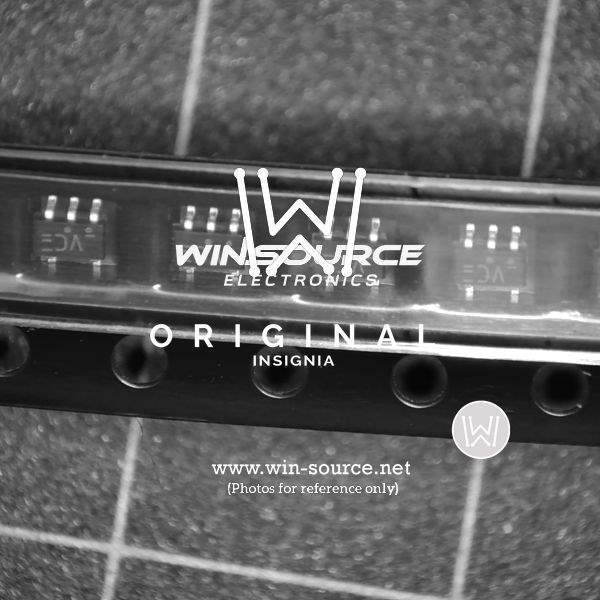

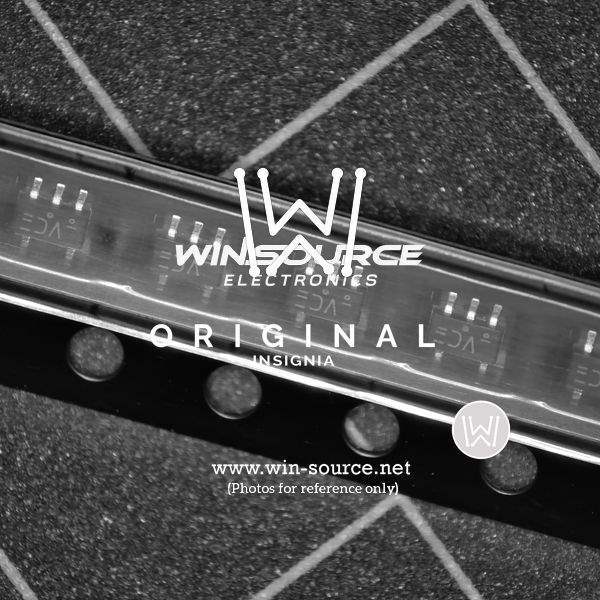

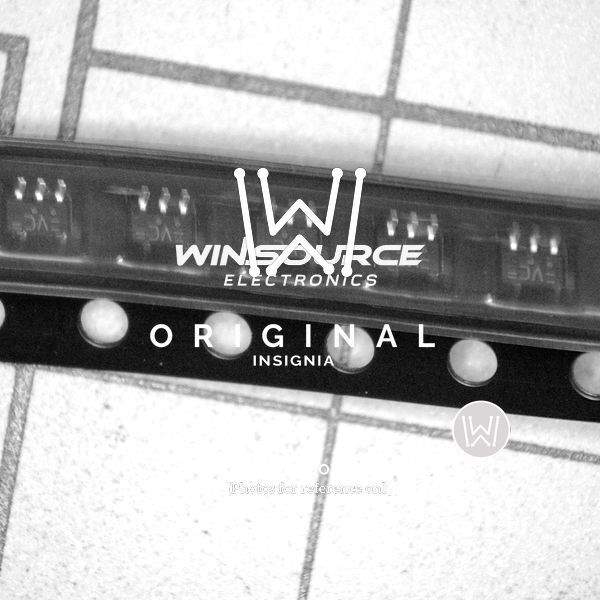

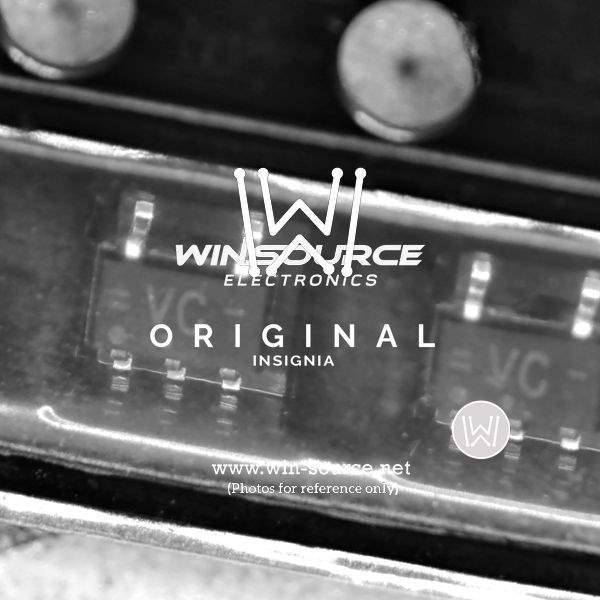

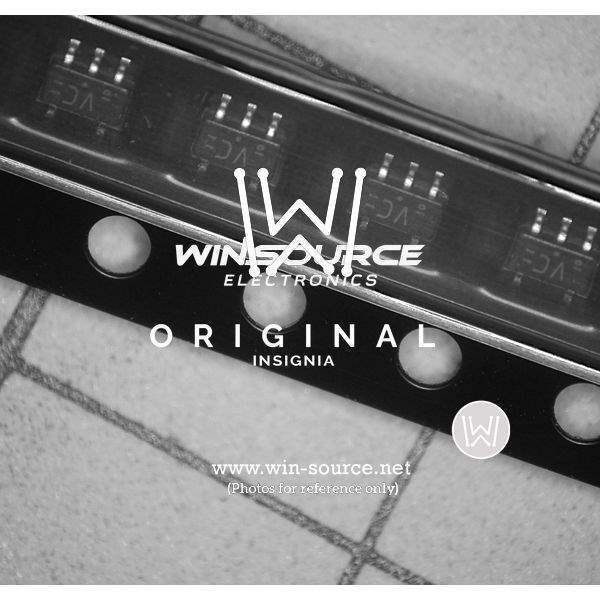

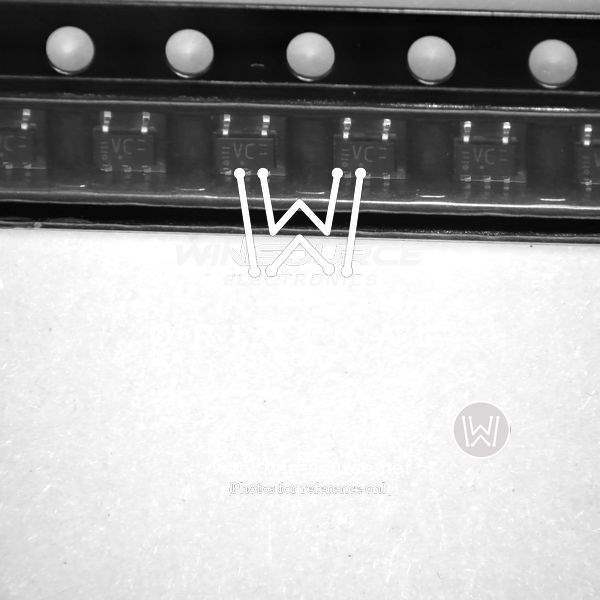

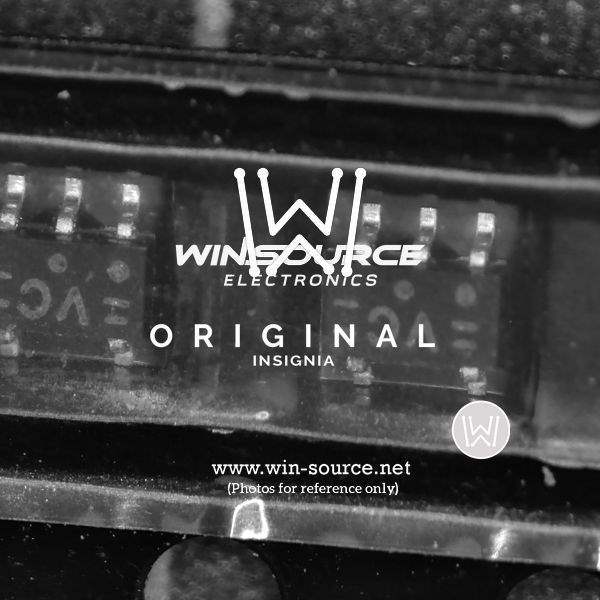

74LVC1G04GW

Part No 74LVC1G04GW
Manufacturer NXP / Nexperia
Catalog Logic - Gates and Inverters
Description Inverter 1-Element CMOS 5-Pin TSSOP / IC INVERTER SGL W/BUFFER 5TSSOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Logic Type Inverter
Number of Circuits 1
Number of Inputs 1
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent (Max) 4μA
Current - Output High, Low 32mA, 32mA
Logic Level - Low 0.7 V to 0.8 V
Logic Level - High 1.7 V to 2 V
Max Propagation Delay @ V, Max CL 3.7ns @ 5V, 50pF
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 5-TSSOP
Dimension 5-TSSOP, SC-70-5, SOT-353
Win Source Part Number 095594-74LVC1G04GW
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name 74LVC1G04
Introduction Date November 21, 2000
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 74LVC1G04GW CAD Model

Description

The NXP 74LVC1G04GW is a high-performance, single inverter gate integrated circuit from NXP Semiconductors' 74LVC series. This device is designed for use in a wide range of applications where space is at a premium and low power consumption is essential. The 74LVC1G04GW operates on a supply voltage range of 1.65V to 5.5V, making it compatible with both 3.3V and 5V systems and ensuring interoperability with various logic levels.

Key Features

  • Logic Type: Inverter
  • Supply Voltage Range: 1.65V to 5.5V
  • Logic Level Compatibility: TTL and CMOS
  • High Noise Immunity: Ensures stable operation in noisy environments.
  • Low Power Consumption: Ideal for battery-operated and power-sensitive applications.
  • High-Speed Performance: Fast propagation delays compatible with high-frequency operations.
  • Package: 5-pin SOT353 (also known as SC-70-5 or SC-88A)
  • Operating Temperature Range: -40°C to +125°C, suitable for industrial applications.

Applications

The 74LVC1G04GW is a versatile component that can be used in various applications, including:

  • Logic level translation
  • Signal inversion
  • Oscillator circuits
  • Pulse shaping
  • Waveform generation
  • Energy-efficient designs

Quality and Reliability

NXP Semiconductors is known for its commitment to quality and reliability, and the 74LVC1G04GW is no exception. This inverter gate is manufactured using advanced silicon-gate CMOS technology, which provides high performance while minimizing power consumption and ensuring long-term reliability. With its robust design and wide operating temperature range, the 74LVC1G04GW is engineered to meet the rigorous demands of both commercial and industrial applications.

Environmental Compliance

The 74LVC1G04GW adheres to international environmental standards. It is RoHS compliant, ensuring that it meets the European Union's restrictions on the use of certain hazardous substances in electrical and electronic equipment. Additionally, it is designed to be a sustainable choice for environmentally conscious designs.
