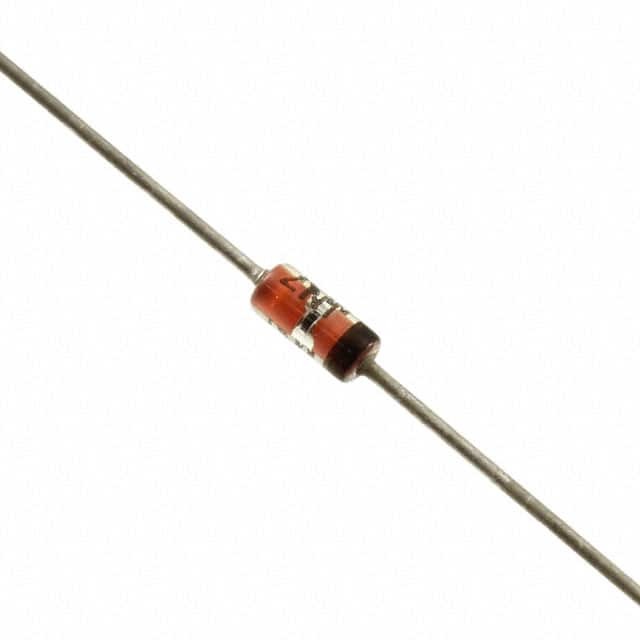

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr NTE
Package Bag
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 20 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 25 nA @ 20 V
Capacitance @ Vr, F 4pF @ 0V, 1MHz
Mounting Type Through Hole
Package / Case DO-204AH, DO-35, Axial
Supplier Device Package DO-35
Operating Temperature - Junction 175°C (Max)
Standard Package 1 pcs
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 854303-1N4446
Ultra Librarian 3D Model Ultra Librarian 1N4446 CAD Model

Description

The 1N4446 is a standard rectifier diode designed for general purpose rectification applications from an unspecified manufacturer.

  • Maximum Reverse Voltage: 100V
  • Average Rectified Current: 200mA
  • Forward Voltage Drop: 1V @ 20mA
  • Reverse Recovery Time: 4ns
  • Capacitance: 4pF @ 0V and 1MHz
  • Package: DO-35 axial
  • Maximum Junction Temperature: 175°C
