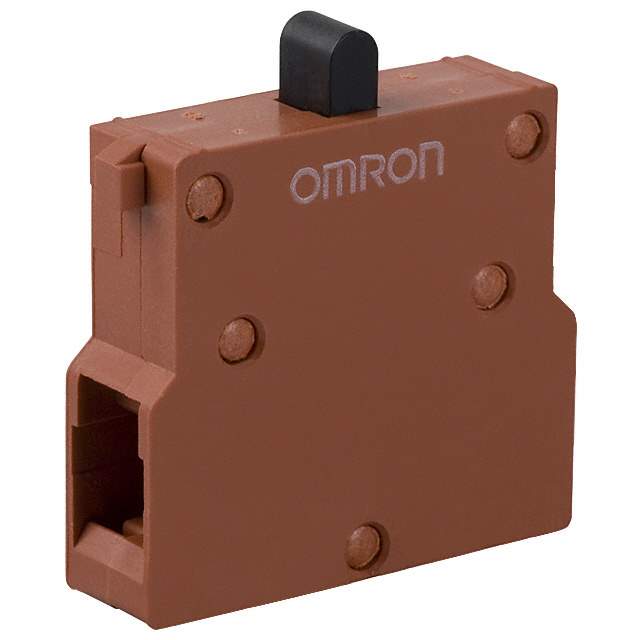

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Configurable Switch Components - Contact Block
Mfr Omron Automation and Safety
Series A22
Package Bulk
Circuit SPST-NC
Requires Switch Body
Termination Style Screw Terminal
Contact Rating @ Voltage 10A @ 110VAC
(Select First, Then Apply Filters) Compatible Series Omron, A22
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names A2201,Z1547
Standard Package 1
Win Source Part Number 1042031-A22-01
Ultra Librarian 3D Model Ultra Librarian A22-01 CAD Model

Description

The Omron A22-01A 2201 is a configurable switch component contact block that is part of the A22 series.

  • Win Source Part Number: 1042031-A22-01
  • Termination Style: Screw Terminal
  • Switch Body Required: Yes
  • Standard Package: 1
  • Circuit: SPST-NC
  • Contact Rating @ Voltage: 10A @ 110VAC
  • Series Compatibility: Omron A22 series
  • ECCN: EAR99
  • HTSUS: 8536.50.9065
