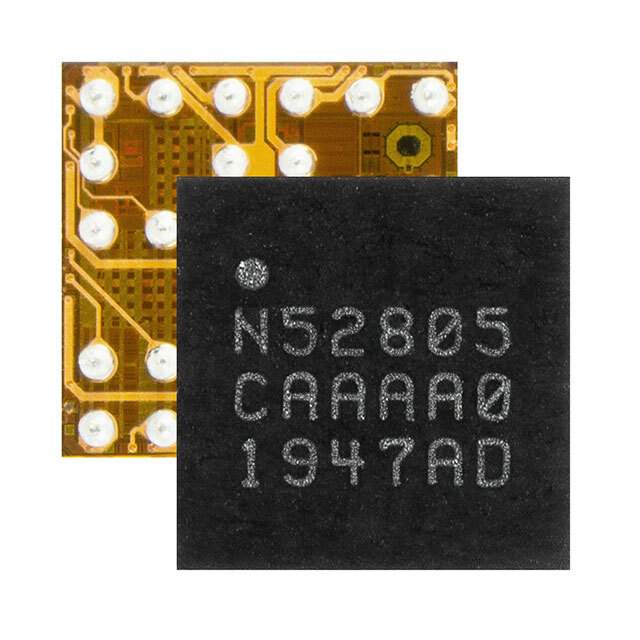

NRF52805-CAAA-R Real Image
Same model may have multiple batches, images only for reference.

NRF52805-CAAA-R

Part No NRF52805-CAAA-R
Manufacturer Nordic Semiconductors
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 5.2 / IC RF TxRx + MCU Bluetooth Bluetooth v5.2 2.4GHz
Datasheet
NRF52805-CAAA-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr Nordic Semiconductor ASA
Package Tape & Reel
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v5.2
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 4dBm
Sensitivity -97dBm
Memory Size 192kB Flash, 24kB RAM
Serial Interfaces ADC, GPIO, I²S, SPI, UART
GPIO 10
Voltage - Supply 1.7V ~ 3.6V
Current - Receiving 4.6mA
Current - Transmitting 4.6mA
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Base Product Number NRF52805
Other Names 1490-NRF52805-CAAA-RDKR,1490-NRF52805-CAAA-RTR,1490-NRF52805-CAAA-RCT
Standard Package 7,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1235852-NRF52805-CAAA-R
Ultra Librarian 3D Model Ultra Librarian NRF52805-CAAA-R CAD Model

Description

The NRF52805-CAAA-R is a TxRx + MCU RF Transceiver IC from Nordic Semiconductor ASA.

  • Application: RF/IF and RFID applications
  • Frequency: 2.4GHz
  • Protocol: Bluetooth v5.2
  • Memory Size: 192kB Flash and 24kB RAM
  • Power Output: 4dBm
  • Sensitivity: -97dBm
  • Maximum Data Rate: 2Mbps
  • Serial Interfaces: ADC, GPIO, I²S, SPI, and UART
  • GPIOs: 10
  • Voltage Supply: 1.7V to 3.6V
  • Temperature Range: -40°C to 85°C
  • Package Type: Tape and reel
  • Standard Package: 7,000 units
  • Ideal for: Wireless connectivity and IoT applications
