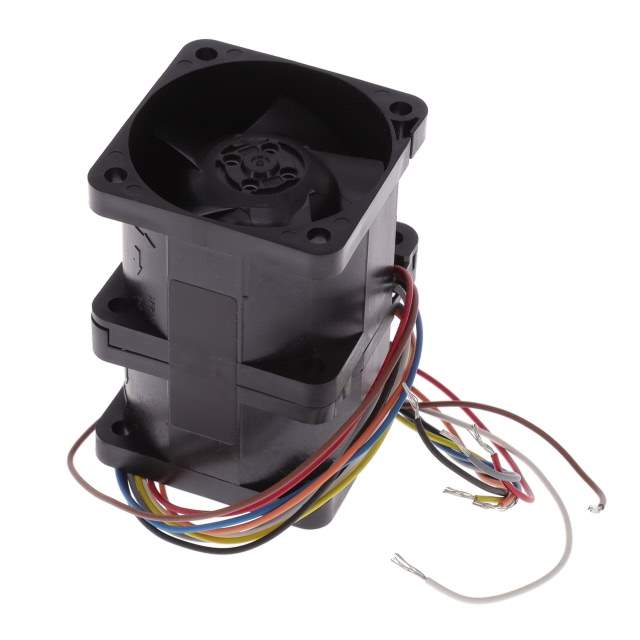

04056EA-12R-EU-B2 Real Image
Same model may have multiple batches, images only for reference.

04056EA-12R-EU-B2

Part No 04056EA-12R-EU-B2
Manufacturer NMB Technologies Corporation
Catalog DC Fans
Description 40MM X 40MM X 56MM, 12VDC, W 4-W / Fan Tubeaxial (Dual) 12VDC Square - 40mm L x 40mm H Ball 30.3 CFM (0.848m³/min) 4 Wire Leads per Fan
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr NMB Technologies Corporation
Series 04056EA
Package Box
Voltage - Rated 12VDC
Dimension Square - 40mm L x 40mm H
Width 56.00mm
Air Flow 30.3 CFM (0.848m³/min)
Static Pressure 3.100 in H2O (772.2 Pa)
Bearing Type Ball
Fan Type Tubeaxial (Dual)
Features Auto Restart, PWM Control, Speed Sensor (Tach)
Noise 69.0dB
Power (Watts) 15.6 W
RPM 20000 Front, 18000 Rear
Termination 4 Wire Leads per Fan
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, cULus, VDE
Current Rating (Amps) 1.30A
Voltage Range 10.8 ~ 12.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number 04056EA
MSL Level Not Applicable
ECCN EAR99
HTSUS 8414.59.6590
Other Names 12-04056EA-12R-EU-B2
Standard Package 144
Win Source Part Number 1122509-04056EA-12R-EU-B2
Ultra Librarian 3D Model Ultra Librarian 04056EA-12R-EU-B2 CAD Model

Description

The 1122509-04056EA-12R-EU-B2 electronic component is a DC brushless fan manufactured by NMB Technologies Corporation.

  • Series: 04056EA
  • Standard Package: 144
  • Voltage: 12VDC
  • Power Rating: 15.6 W
  • Lifetime: 70000 hours @ 40 degrees Celsius
  • Width: 56.00mm
  • Dimension: Square - 40mm L x 40mm H
  • Alternative Parts: 04056EA-12R-EU-B2
  • Noise Level: 69.0dB
  • Air Flow: 30.3 CFM (0.848m³/min)
