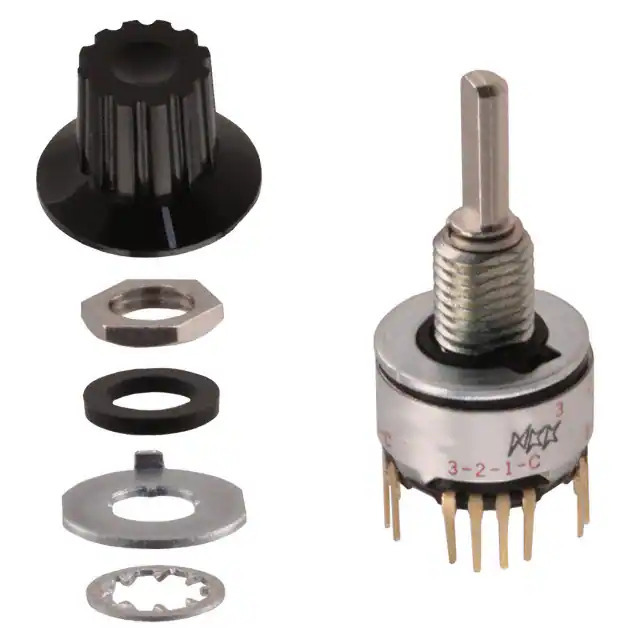

MRK403-A NKK Switches
Same model may have multiple batches, images only for reference.

MRK403-A

Part No MRK403-A
Manufacturer NKK Switches
Catalog Rotary Switches
Description SWITCH ROTARY 2-3POS 0.4VA 28V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Rotary Switches
Mfr NKK Switches
Series MR
Package Box
Product Status Active
Number of Positions 2 ~ 3
Index Stops Adjustable
Number of Decks 1
Number of Poles per Deck 4
Circuit per Deck 4P3T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Knob
Actuator Length 13.00mm
Angle of Throw 30°
Contact Material Phosphor Bronze
Contact Finish Gold
Mounting Type Panel Mount, Through Hole
Termination Style PC Pin
Features Process Sealed
Depth Behind Panel 10.10mm
Panel Cutout Dimensions Circular - 6.35mm Dia
Base Product Number MRK403
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Win Source Part Number 1375946-MRK403-A
Ultra Librarian 3D Model Ultra Librarian MRK403-A CAD Model

Description

The MRK403-A is a rotary switch from NKK Switches.

  • Seal: Process Sealed
  • Current Rating: 0.4VA (AC/DC)
  • Contact Finish: Gold
  • Mounting Type: Panel Mount, Through Hole
  • Voltage Rating: 28 V (AC/DC)
  • Contact Material: Phosphor Bronze
  • Positions: 2 ~ 3
  • Circuit per Deck: 4P3T
  • Index Stop: Adjustable
  • Angle of Throw: 30°
  • Panel Cutout Dimensions: Circular - 6.35mm Dia
  • Actuator Length: 13.00mm
  • Depth Behind Panel: 10.10mm
  • RoHS: Compliant
  • REACH: Unaffected
