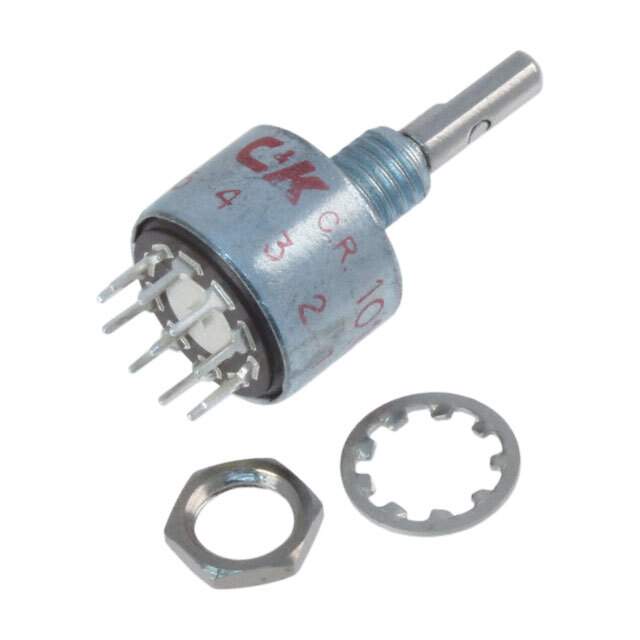

MA05L1NCQD Real Image
Same model may have multiple batches, images only for reference.

MA05L1NCQD

Part No MA05L1NCQD
Manufacturer C&K Components
Catalog Rotary Switches
Description SWITCH ROTARY 5POS 250MA 125V / Rotary Switch 5 Position SP5T 250mA (AC/DC) 125 VAC Panel Mount, Through Hole
Datasheet
MA05L1NCQD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rotary Switches
Mfr C&K
Series M
Package Bulk
Number of Positions 5
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP5T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 250mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 28 V
Actuator Type Flatted (3.17mm Dia)
Actuator Length 10.16mm
Angle of Throw 36°
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Panel Mount, Through Hole
Termination Style PC Pin
Depth Behind Panel 10.42mm
Panel Cutout Dimensions Circular - 6.60mm Dia
Base Product Number MA05L1N
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9025
Other Names *MA05L1NCQD,MA05L1NCQD-ND,CKN10042
Standard Package 80
Win Source Part Number 1041898-MA05L1NCQD
Ultra Librarian 3D Model Ultra Librarian MA05L1NCQD CAD Model

Description

The MA05L1NCQD is a rotary switch manufactured by C&K.

  • Package: Standard
  • Package Quantity: 80
  • Positions: 5
  • Circuit per Deck: SP5T
  • Voltage Rating AC: 125V AC
  • Voltage Rating DC: 28V DC
  • Actuator Type: Flatted (3.17mm Dia)
  • Actuator Length: 10.16mm
  • Index Stop: Fixed
  • Mounting Type: Panel Through Hole
