Same model may have multiple batches, images only for reference.

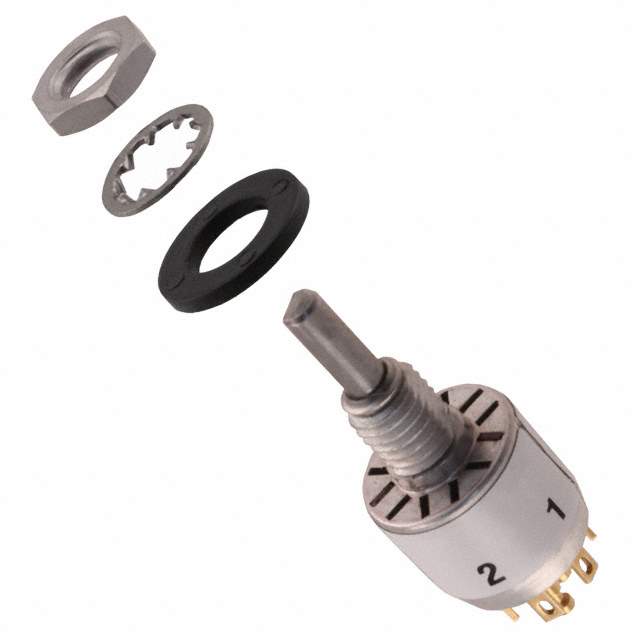

50D60-01-2-AJN Real Image
Same model may have multiple batches, images only for reference.

50D60-01-2-AJN

Part No 50D60-01-2-AJN
Manufacturer Grayhill Inc.
Catalog Rotary Switches
Description SWITCH ROTARY 2-3POS 150MA 115V / Rotary Switch 2 ~ 3 Position DP3T 150mA (AC), 200mA (DC) 115 VAC Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rotary Switches
Mfr Grayhill Inc.
Series 50
Package Bulk
Number of Positions 2 ~ 3
Index Stops Adjustable
Number of Decks 1
Number of Poles per Deck 2
Circuit per Deck DP3T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 150mA (AC), 200mA (DC)
Voltage Rating - AC 115 V
Voltage Rating - DC 28 V
Actuator Type Flatted (3.17mm Dia)
Actuator Length 9.53mm
Angle of Throw 60°
Contact Finish Gold
Mounting Type Panel Mount
Termination Style Solder Lug
Depth Behind Panel 18.77mm
Panel Cutout Dimensions Circular - 6.45mm Dia
Base Product Number 50D60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Other Names GH7350,2266-50D60-01-2-AJN,50D60-01-2-AJN-ND,50D60012AJN
Standard Package 1
Win Source Part Number 1193511-50D60-01-2-AJN
Ultra Librarian 3D Model Ultra Librarian 50D60-01-2-AJN CAD Model

Description

The Grayhill Inc. 50D60-01-2-AJN electronic component is a switch with a circular panel cutout of 6.45mm diameter.

  • Panel Cutout: 6.45mm diameter
  • Contact Timing: Non-Shorting (BBM)
  • Actuator Type: Flatted (3.17mm diameter)
  • Index Stops: Adjustable
  • Number of Positions: 2-3
  • Number of Decks: 1
  • Number of Poles per Deck: 2
  • Circuit per Deck: DP3T
  • Angle of Throw: 60-degree
  • Depth Behind Panel: 18.77mm
  • Current Rating: 150mA (AC) and 200mA (DC)
  • ECCN: EAR99
