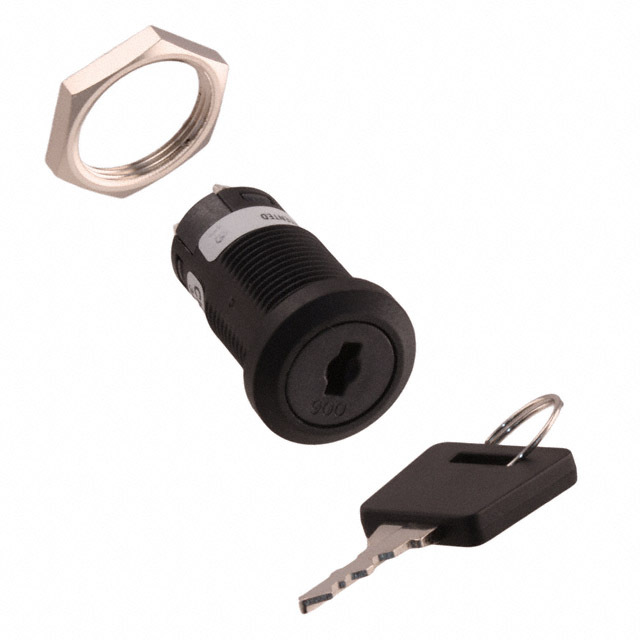

CKM12AFW01 NKK Switches – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CKM12AFW01

Part No CKM12AFW01
Manufacturer NKK Switches
Catalog Keylock Switches
Description Keylock Switch 2 Position SPDT 3A (AC) 250 VAC DC Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer NKK Switches
Series CK
Packaging Bulk
Circuit SPDT
Number of Positions 2
Switch Function On-On
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 3A (AC)
Voltage Rating - AC 250 V
Actuator Type Flat Key
Key Removable Positions All
Angle of Throw 90°
Contact Material Silver (Ag)
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 16.00mm Dia
Features Epoxy Sealed Terminals
Temperature Range - Operating -25°C ~ 70°C
Depth Behind Flange 31.20mm
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number CKM12AFW
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Win Source Part Number 1480883-CKM12AFW01
Ultra Librarian 3D Model Ultra Librarian CKM12AFW01 CAD Model
