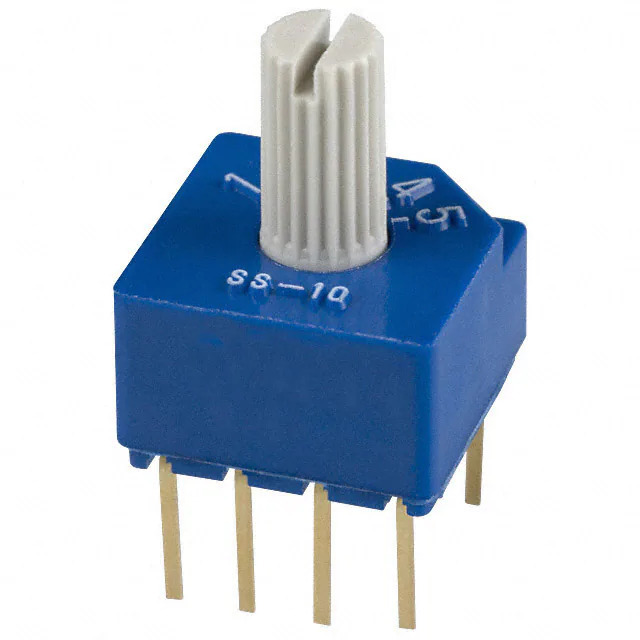

SS-10-15SP-LE Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

SS-10-15SP-LE

Part No SS-10-15SP-LE
Manufacturer Nidec Copal Electronics
Catalog DIP Switches
Description SWITCH ROTARY DIP SP5T 100MA 5V
Datasheet
SS-10-15SP-LE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Nidec Components Corporation
Series SS-10
Package Bulk
Product Status Active
Circuit SP5T
Number of Positions 5
Current Rating (Amps) 100mA
Voltage Rating 5VDC
Actuator Type Rotary with Shaft
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.535" (13.59mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features -
Temperature Range - Operating -25°C ~ 70°C
Body Material Polybutylene Terephthalate (PBT)
Length 0.394" (10.00mm)
Mechanical Life -
Electrical Life 500 Cycles
Base Product Number SS-10-15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375947-SS-10-15SP-LE
Ultra Librarian 3D Model Ultra Librarian SS-10-15SP-LE CAD Model

Description

The SS-10-15SP-LE is a SP5T rotary DIP switch manufactured by Nidec Components Corporation.

  • Current Rating: 100mA
  • Voltage Rating: 5VDC
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Positions: 5
  • Body Material: Polybutylene Terephthalate (PBT)
  • Washable: Yes
  • Electrical Life: 500 Cycles
