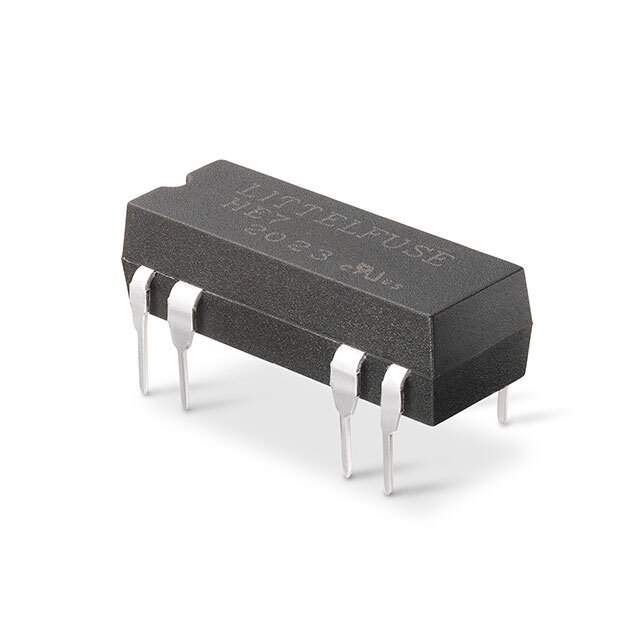

HE722A2400 Real Image
Same model may have multiple batches, images only for reference.

HE722A2400

Part No HE722A2400
Manufacturer Littelfuse Inc.
Catalog Reed Relays
Description RELAY REED DPST 500MA 24V / DUAL-IN-LINE Reed Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Tube
Mounting Style Through Hole
Coil Voltage 24VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 500mA
Switching Voltage 200VDC - Max
Coil Current 11.1mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 16 VDC
Must Release Voltage 2 VDC
Operate Time 1ms
Release Time 1ms
Temperature Range - Operating -40°C ~ 85°C
Coil Resistance 2.15 kOhms
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809883-HE722A2400
Ultra Librarian 3D Model Ultra Librarian HE722A2400 CAD Model

Description

The Littelfuse Inc. HE722A2400 is a DPST-NO (2 Form A) through hole relay.

  • Coil Type: Non-Latching
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.15 kOhms
  • Coil Current: 11.1mA
  • Contact Rating: 500mA
  • Switching Voltage: 200VDC - Max
  • Operating Temperature Range: -40°C ~ 85°C
  • Manufacturer Pack Quantity: 500
  • MSL Level: 1 (Unlimited)
  • Must Operate Voltage: 16 VDC
  • Must Release Voltage: 2 VDC
