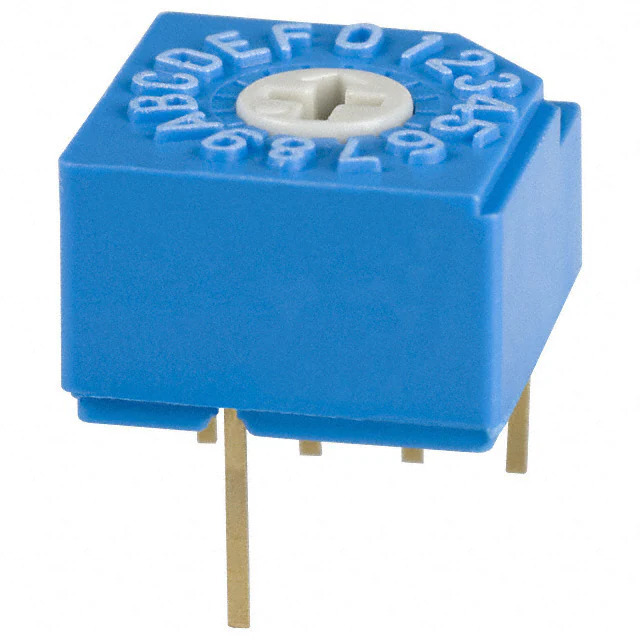

S-1010A Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Nidec Components Corporation
Series S-1000A
Package Bulk
Product Status Active
Circuit Hexadecimal
Number of Positions 16
Current Rating (Amps) 100mA
Voltage Rating 5VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.275" (6.99mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features -
Temperature Range - Operating -40°C ~ 85°C
Body Material Polybutylene Terephthalate (PBT)
Length 0.394" (10.00mm)
Mechanical Life -
Electrical Life 10,000 Steps
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376137-S-1010A
Ultra Librarian 3D Model Ultra Librarian S-1010A CAD Model

Description

The S-1010A is a DIP switch manufactured by Nidec Components Corporation.

  • Positions: 16
  • Current Rating: 100mA
  • Voltage Rating: 5VDC
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Mounting Type: Through-Hole
  • Pitch: 0.100" (2.54mm)
  • Actuator Type: Rotary for Tool
  • Termination Style: PC Pin
  • Mechanical Life: 10,000 steps
  • Body Material: Polybutylene Terephthalate (PBT)
  • Washable: Yes
  • Status: Active
  • Series: S-1000A
