Same model may have multiple batches, images only for reference.

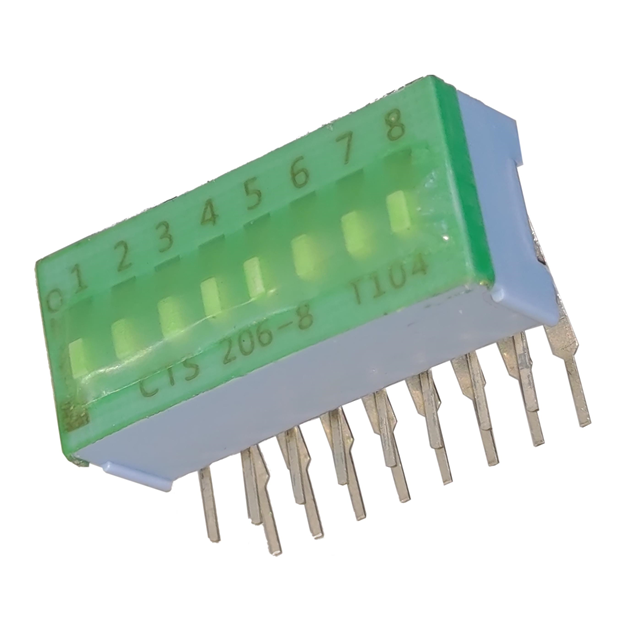

206-8RAST Real Image
Same model may have multiple batches, images only for reference.

206-8RAST

Part No 206-8RAST
Manufacturer CTS Electrocomponents
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 50MA 24V / Dip Switch SPST 8 Position Through Hole, Right Angle Slide (Standard) Actuator 50mA 24VDC
Datasheet
206-8RAST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 206RA
Package Tube
Circuit SPST
Number of Positions 8
Current Rating (Amps) 50mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.400" (10.16mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm) , Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Body Material Plastic
Length 0.886" (22.50mm)
Electrical Life 10,000 Cycles
Standard Package 25
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 1342439-206-8RAST
Ultra Librarian 3D Model Ultra Librarian 206-8RAST CAD Model

Description

The CTS Electrocomponents 1342439-206-8RAST is a DIP Switch with 8 positions.

  • Number of Positions: 8
  • Pitch: 0.100" (2.54mm)
  • Circuit: Full
  • Termination Style: PC Pin
  • Voltage Rating: 24VDC
  • Current Rating: 50mA
  • Operating Temperature: -55°C to 85°C
  • Packaging: Tube
  • Standard Package: 25
  • Series: 206RA
  • Actuator Level: Raised
