Same model may have multiple batches, images only for reference.

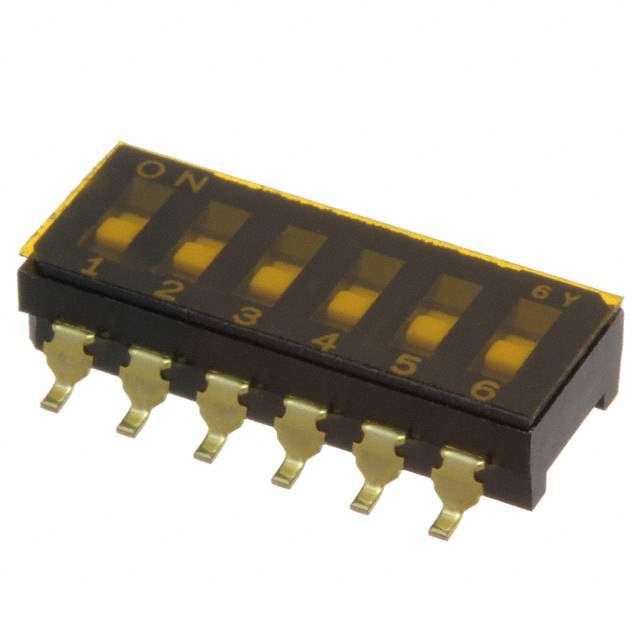

CFS-0600TB Real Image
Same model may have multiple batches, images only for reference.

CFS-0600TB

Part No CFS-0600TB
Manufacturer Nidec Copal Electronics
Catalog DIP Switches
Description SWITCH DIP 6POS SPST 100MA 6V / Dip Switch SPST 6 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC
Datasheet
CFS-0600TB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Nidec Copal Electronics
Series CFS
Package Tape & Reel
Circuit SPST
Number of Positions 6
Current Rating (Amps) 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.146" (3.70mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.657" (16.70mm)
Electrical Life 1,000 Cycles
Base Product Number CFS-0600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 563-CFS-0600DKR,563-CFS-0600CT,563-CFS-0600TR
Standard Package 1,000
Win Source Part Number 1051855-CFS-0600TB
Ultra Librarian 3D Model Ultra Librarian CFS-0600TB CAD Model

Description

The CFS-0600TB is a 6 position DIP switch designed by Nidec Copal Electronics. Nidec Copal Electronics is the manufacturer.

  • Positions: 6
  • Termination Style: Gull wing
  • Pitch: 0.100" (2.54mm), full
  • Contact Finish: Gold
  • Packaging: Tape and reel
  • Circuit: SPST
  • Actuator Type: Slide
  • Actuator Level: Flush, recessed
  • Voltage Rating: 6VDC
  • Washable: Yes
  • Temperature Range: -40°C to 85°C
  • Electrical Life: 1000 cycles
