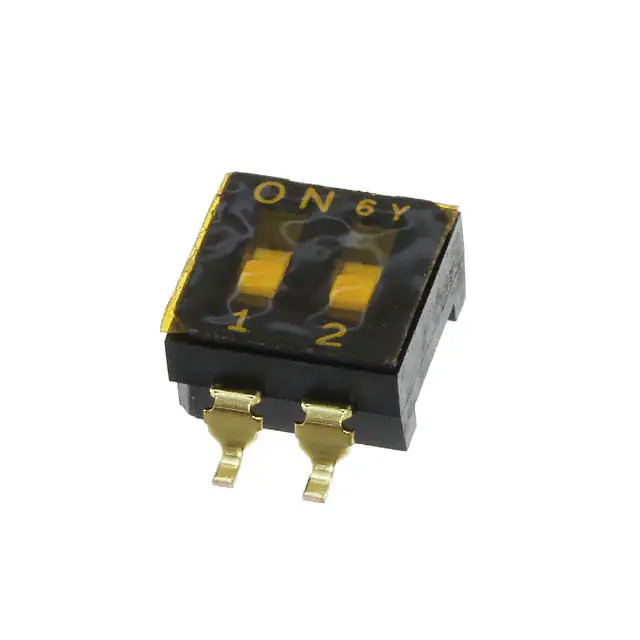

CFS-0200TB Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CFS-0200TB

Part No CFS-0200TB
Manufacturer Nidec Copal Electronics
Catalog DIP Switches
Description SWITCH DIP 2POS SPST 100MA 6V
Datasheet
CFS-0200TB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Nidec Components Corporation
Series CFS
Package Tape & Reel
Product Status Active
Circuit SPST
Number of Positions 2
Current Rating (Amps) 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.146" (3.70mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.256" (6.50mm)
Mechanical Life -
Electrical Life 1,000 Cycles
Base Product Number CFS-0200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376348-CFS-0200TB
Ultra Librarian 3D Model Ultra Librarian CFS-0200TB CAD Model

Description

The CFS-0200TB is a surface mount DIP switch from Nidec Components Corporation. It is part of the CFS series and comes in a tape and reel package.

  • Series: CFS
  • Mounting Type: Surface Mount
  • Actuator Type: Slide
  • Circuit: SPST
  • Current Rating: 100mA
  • Voltage Rating: 6VDC
  • Contact Finish: Gold
  • Body Material: Polyphenylene Sulfide (PPS)
  • Height Above Board: 0.146" (3.70mm)
  • Actuator Level: Flush, Recessed
  • Features: Washable
  • Length: 0.256" (6.50mm)
  • Mechanical Life: -
  • Electrical Life: 1,000 Cycles
