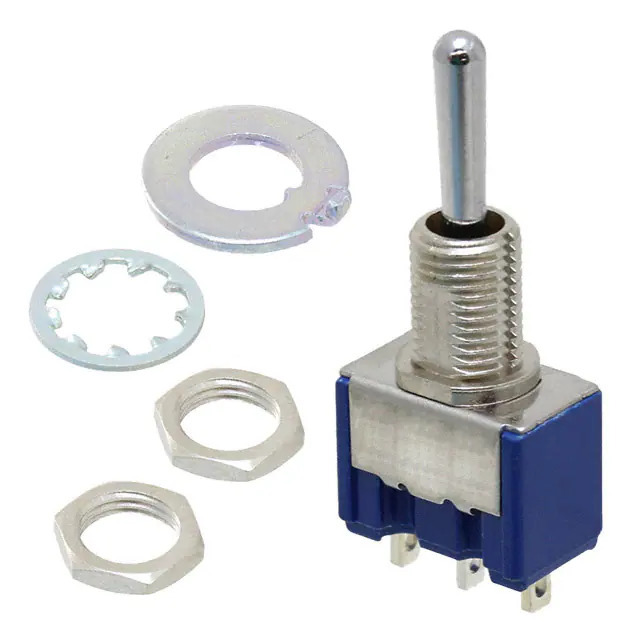

8A1021-Z Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

8A1021-Z

Part No 8A1021-Z
Manufacturer Nidec Copal Electronics
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 6A 125V / Toggle Switch SPDT Panel Mount
Datasheet
8A1021-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr Nidec Components Corporation
Series 8A
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-Off-On
Current Rating (Amps) 6A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 10.50mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 6.50mm Dia
Bushing Thread 1/4-40
Ingress Protection -
Features Sealed - Flux Protection
Temperature Range - Operating -30°C ~ 85°C
Actuator Material -
Electrical Life 50,000 Cycles
Base Product Number 8A1021
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375989-8A1021-Z
Ultra Librarian 3D Model Ultra Librarian 8A1021-Z CAD Model

Description

The 8A1021-Z is a panel mount toggle switch from Nidec Components Corporation.

  • Series: 8A
  • Current Rating (AC): 6A
  • Current Rating (DC): 4A
  • Circuit: SPDT
  • Voltage Rating (AC): 125V
  • Voltage Rating (DC): 30V
  • Actuator Type: Standard Round
  • Termination Style: Solder Lug
  • Panel Cutout Dimensions: Circular - 6.50mm diameter
  • Electrical Life: 50,000 cycles
  • Temperature Range: -30°C to 85°C
  • Actuator Length: 10.50mm
  • Illumination: Non-Illuminated
  • Bushing Thread: 1/4-40
