Same model may have multiple batches, images only for reference.

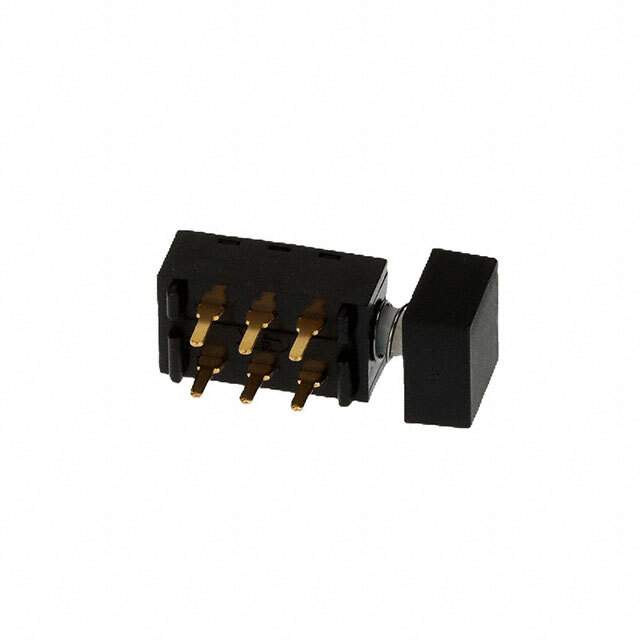

L212172MV02G2 Real Image
Same model may have multiple batches, images only for reference.

L212172MV02G2

Part No L212172MV02G2
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 4A 125V / Slide Switch DPDT Through Hole, Right Angle
Datasheet
L212172MV02G2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series L
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-Mom
Current Rating (Amps) 4A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 28 V
Actuator Type Snap on Cap
Actuator Length 9.53mm
Contact Material Copper
Contact Finish Gold
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Features Black Actuator
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 3.30mm
Electrical Life 10,000 Cycles
Base Product Number L212172
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names CKN11878,L212172MV02G2-ND
Standard Package 1
Win Source Part Number 1068349-L212172MV02G2
Ultra Librarian 3D Model Ultra Librarian L212172MV02G2 CAD Model

Description

The L series slide switch from C&K Components is a DPDT switch with a snap on cap actuator and a right angle through hole mounting style.

  • Actuator: Black actuator made of Polyamide (PA66), Nylon 6/6
  • Contact Finish: Gold
  • Contact Material: Copper
  • Voltage Rating (AC): 125V
  • Voltage Rating (DC): 28V
  • Switch Function: On-Mom
  • Switch Travel: 3.30mm
  • Actuator Length: 9.53mm
  • Mechanical Life: 10,000 cycles
