Same model may have multiple batches, images only for reference.

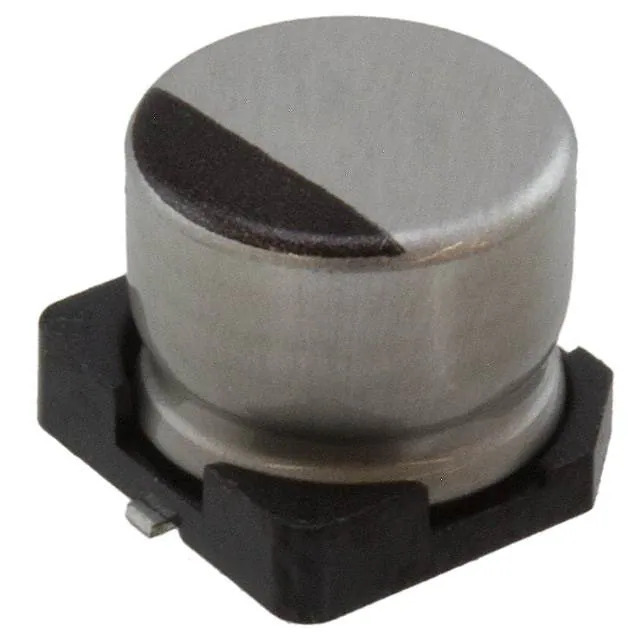

UWZ1V220MCL1GB Nichicon
Same model may have multiple batches, images only for reference.

UWZ1V220MCL1GB

Part No UWZ1V220MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 35V SMD / 22 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Datasheet
UWZ1V220MCL1GB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWZ
Package Tape & Reel
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications High Temperature Reflow
Ripple Current @ Low Frequency 42 mA @ 120 Hz
Ripple Current @ High Frequency 63 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.224" (5.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360179-UWZ1V220MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWZ1V220MCL1GB CAD Model

Description

The Nichicon UWZ1V220MCL1GB is a radial, can - SMD aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 22 µF
  • Voltage: 35 V
  • Tolerance: ±20%
  • Application: High Temperature Reflow
  • Lifetime: 1000 hours @ 105°C
  • Ripple Current (Low Frequency): 42 mA @ 120 Hz
  • Ripple Current (High Frequency): 63 mA @ 10 kHz
  • Size: 0.248" diameter x 0.224" height
  • Surface Mount Land Size: 0.260" x 0.260"
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarization: Polarized
  • Mounting Type: Surface Mount
