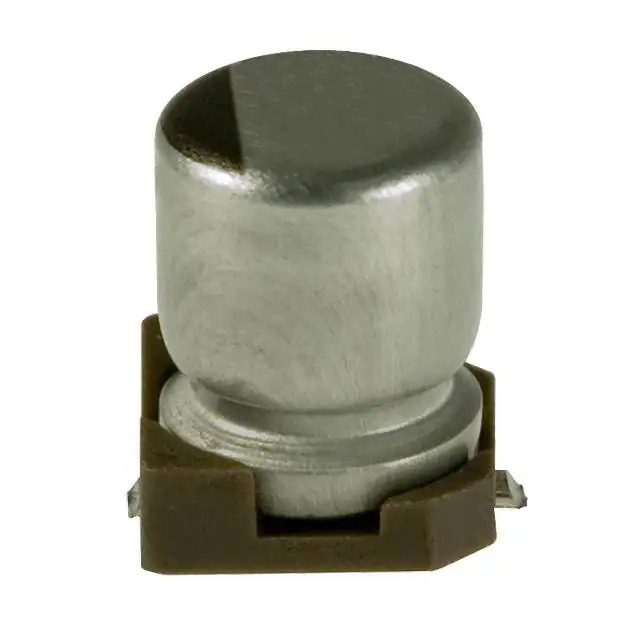

UWX1E4R7MCL1GB Nichicon
Same model may have multiple batches, images only for reference.

UWX1E4R7MCL1GB

Part No UWX1E4R7MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 4.7UF 20% 25V SMD / 4.7 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWX
Package Tape & Reel
Product Status Last Time Buy
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 16 mA @ 120 Hz
Ripple Current @ High Frequency 24 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360186-UWX1E4R7MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWX1E4R7MCL1GB CAD Model

Description

The UWX1E4R7MCL1GB is a radial, surface mount aluminum electrolytic capacitor from Nichicon's UWX series.

  • Capacitance: 4.7 μF
  • Voltage Rating: 25 V
  • Temperature Range: -40°C to 85°C
  • Application: General Purpose
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 16 mA @ 120 Hz
  • Ripple Current (High Frequency): 24 mA @ 10 kHz
  • Diameter: 0.157"
  • Seated Height: 0.213"
  • Packaging: Tape & Reel
  • Surface Mount Land Size: 0.169" x 0.169"
  • Lifetime: 2000 hours @ 85°C
  • Polarization: Polarized
