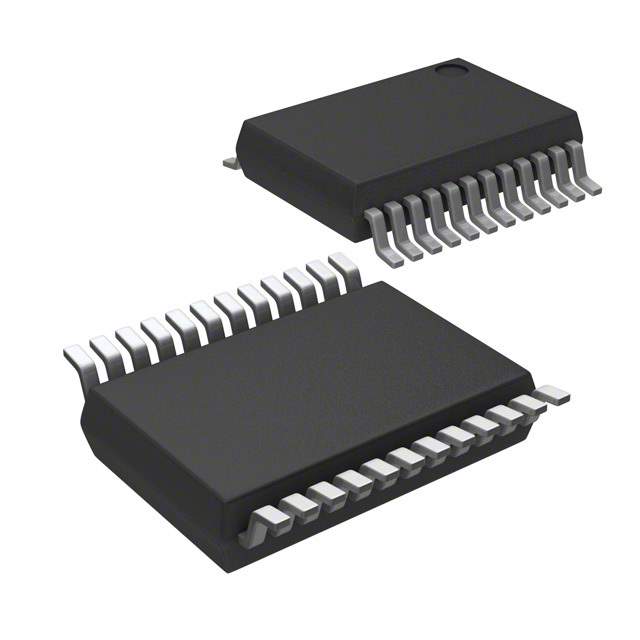

The PAM8602ENHR is a high-performance, filterless Class-D audio amplifier from Diodes Incorporated, renowned for its compact design and energy-efficient operation. This advanced audio IC is specifically engineered to deliver high-quality sound with minimal power loss, making it an ideal solution for portable and space-constrained applications.

Key Features

• Output Power: Capable of driving 15W into a 4Ω speaker or 10W into an 8Ω speaker at 10% THD+N from a 12V power supply, the PAM8602ENHR ensures robust sound output for its size.
• High Efficiency: With an efficiency rate of up to 90%, this audio amplifier ensures extended battery life in portable devices by minimizing power waste.
• Filterless Design: The PAM8602ENHR employs a filterless architecture, which reduces the need for external components, simplifies circuit design, and saves board space.
• Advanced Protection: It includes features such as over-temperature protection, under-voltage lockout, and short-circuit protection, safeguarding the device against common electrical faults.
• Low Quiescent Current: The amplifier has a low idle power consumption, which is essential for battery-powered devices where energy conservation is crucial.

Applications

The PAM8602ENHR is versatile and can be used in a variety of applications. Its compact footprint and high efficiency make it perfect for:

• Portable Bluetooth speakers
• Battery-powered audio devices
• Wireless speakers and soundbars
• Home audio systems
• Smartphones and tablets

Technical Specifications

The PAM8602ENHR operates within a supply voltage range of 6V to 15V, making it compatible with various power sources. Its thermal performance is enhanced by a power pad on the underside of the package, which allows for efficient heat dissipation.

Conclusion

With its combination of power, efficiency, and protection features, the PAM8602ENHR from Diodes Incorporated stands out as a top choice for designers looking to incorporate a reliable and high-quality audio amplifier into their next project.
