Same model may have multiple batches, images only for reference.

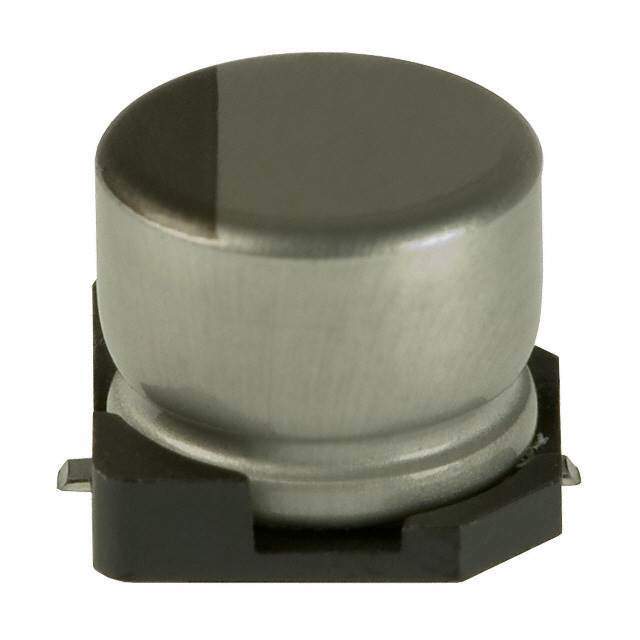

UWT1C470MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWT1C470MCL1GB

Part No UWT1C470MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 16V SMD / 47 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 50 mA @ 120 Hz
Ripple Current @ High Frequency 75 mA @ 10 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 493-2176-2,493-2176-1,493-2176-6,Q5937320
Standard Package 1,000
Win Source Part Number 1331015-UWT1C470MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWT1C470MCL1GB CAD Model

Description

The UWT1C470MCL1GB is an aluminum electrolytic capacitor designed for general purpose applications. Bold the product name (e.g., BAV99S,135 → UWT1C470MCL1GB) and manufacturer (e.g., Nexperia USA Inc. → (Manufacturer missing from original text).

  • Application: General Purpose
  • Capacitance: 47 µF
  • Tolerance: ±20%
  • Voltage Rating: 16 V
  • Surface Mount Land Size: 0.260” L x 0.260” W (6.60mm x 6.60mm)
  • Height (Max): 0.213” (5.40mm)
  • Package/Case: Radial, Can - SMD
  • Lifetime @ Temp.: 1000 Hrs @ 105°C
  • Ripple Current (Low Frequency): 50 mA @ 120 Hz
  • Ripple Current (High Frequency): 75 mA @ 10 kHz
  • Operating Temperature: -55°C ~ 105°C
