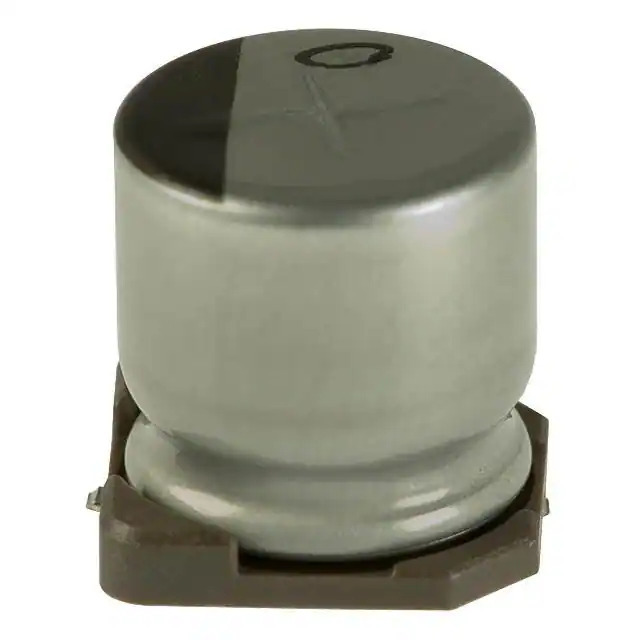

Same model may have multiple batches, images only for reference.
UWT1A681MNL1GS Nichicon
Same model may have multiple batches, images only for reference.

UWT1A681MNL1GS

Part No UWT1A681MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 10V SMD / 680 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWT
Package Tape & Reel
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 310 mA @ 120 Hz
Ripple Current @ High Frequency 465 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360331-UWT1A681MNL1GS
Ultra Librarian 3D Model Ultra Librarian UWT1A681MNL1GS CAD Model

Description

The Nichicon UWT series aluminum electrolytic capacitor is a general-purpose capacitor designed for a wide range of applications.

  • Manufacturer: Nichicon
  • Product Name: UWT Series Aluminum Electrolytic Capacitor
  • Capacitance: 680 µF
  • Voltage Rating: 10 V
  • Tolerance: ±20%
  • Lifetime: 1000 hours @ 105°C
  • Ripple Current (Low Frequency): 310 mA @ 120 Hz
  • Ripple Current (High Frequency): 465 mA @ 10 kHz
  • Mounting Type: Surface Mount
  • Package: Radial, Can - SMD
  • Size: 0.394" Dia (10.00mm)
  • Height: 0.394" (10.00mm)
  • REACH Compliance: Unaffected
  • ECCN: EAR99
  • Polarization: Polarized
