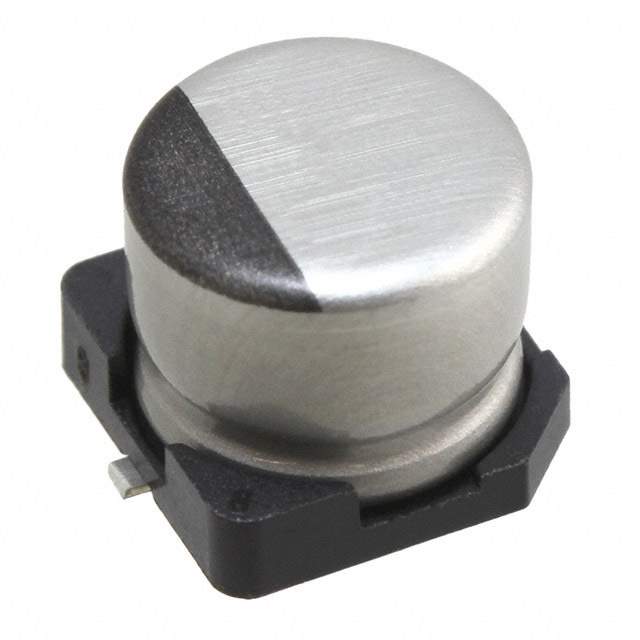

Same model may have multiple batches, images only for reference.

UWJ1A101MCL1GB

Name: UWJ1A101MCL1GB
Brand: Nichicon
SKU: 1381248
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UWJ1A101MCL1GB
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 10V SMD / 100 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Datasheet	UWJ1A101MCL1GB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UWJ
Package	Tape & Reel
Product Status	Last Time Buy
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	10 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	76 mA @ 120 Hz
Ripple Current @ High Frequency	114 mA @ 10 kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.217" (5.50mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8532.22.0020
Standard Package	1,000 pcs
Win Source Part Number	1381248-UWJ1A101MCL1GB
Ultra Librarian 3D Model	Ultra Librarian UWJ1A101MCL1GB CAD Model

Alternative Products

Description

The 1381248-UWJ1A101MCL1GB is an aluminum electrolytic capacitor from Nichicon.

Series: UWJ
Package: Tape and Reel
Diameter: 0.248" (6.30mm)
Application: General Purpose
Seated Height: 0.217" (5.50mm)
Capacitance: 100µF
Tolerance: ±20%
Rated Voltage: 10V
Lifetime: 2000 Hours @ 85°C
Polarization: Polarized
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type: Surface Mount
Package: Radial, Can - SMD
Operating Temperature: -40°C to 85°C
REACH: Affected
Moisture Sensitivity Level: 1 (Unlimited)
