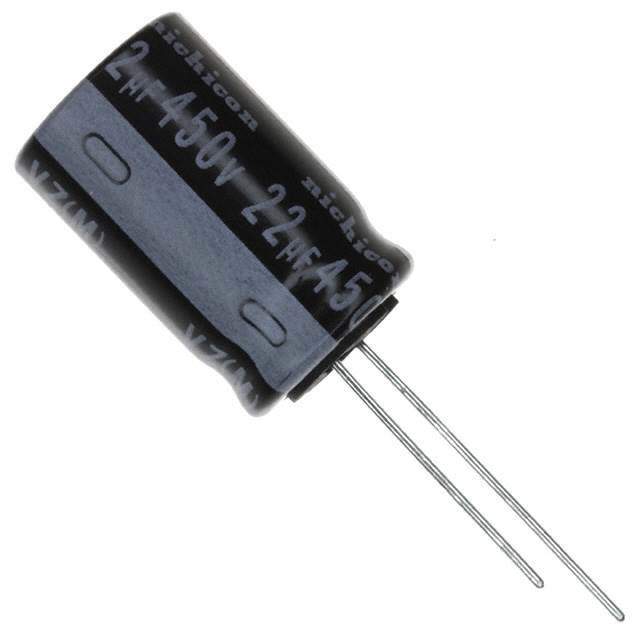

Same model may have multiple batches, images only for reference.

UVZ2W220MHD

Name: UVZ2W220MHD
Brand: Nichicon
SKU: 465644
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UVZ2W220MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 450V RADIAL
Datasheet	UVZ2W220MHD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Packaging	Bulk
Status	Active
Capacitance	22μF
Tolerance	±20%
Voltage Rating	450V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-25°C to 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current - Low Frequency	115mA @ 120Hz
Ripple Current - High Frequency	184mA @ 10kHz
Lead Spacing	0.295" (7.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Mounting	Through Hole
Dimension	Radial, Can
Win Source Part Number	1050401-UVZ2W220MHD
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian UVZ2W220MHD CAD Model

Description

The 1050401-UVZ2W220MHD is a through-hole capacitor from Nichicon with a capacitance of 22μF, a voltage rating of 450V, and a tolerance of ±20%.

Capacitance: 22μF
Voltage Rating: 450V
Tolerance: ±20%
Height-Seated (Max): 1.063" (27.00mm)
Lead Spacing: 0.295" (7.50mm)
Category: Capacitors
Product Status: Active
Supply and Demand Status: Balanced
Lifetime: 1000 Hrs @ 105°C
Ripple Current (Low Frequency): 115mA @ 120Hz
Ripple Current (High Frequency): 184mA @ 10kHz
Packaging: Bulk
