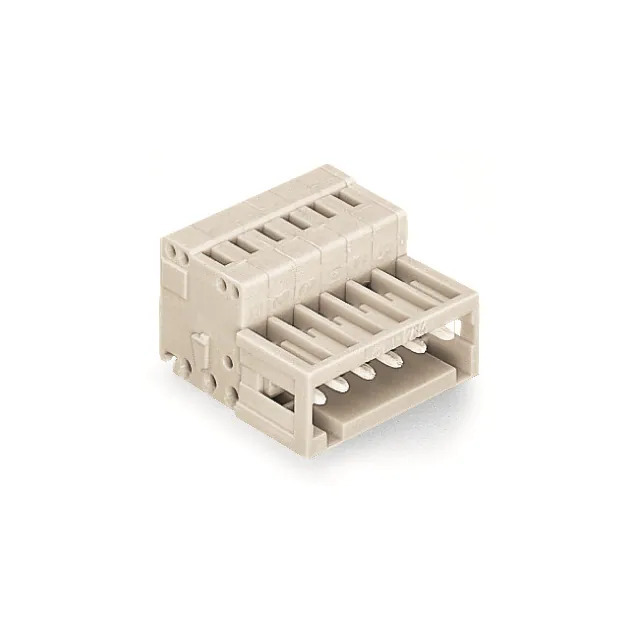

Same model may have multiple batches, images only for reference.

734-302

Name: 734-302
Brand: WAGO Corporation
SKU: 1364618
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	734-302
Manufacturer	WAGO Corporation
Catalog	Headers, Plugs and Sockets
Description	1-CONDUCTOR MALE CONNECTOR; 100% / 2 Position Terminal Block Plug, Male Pins 0.138" (3.50mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	WAGO Corporation
Series	MCSMINI
Package	Box
Product Status	Active
Type	Plug, Male Pins
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.138" (3.50mm)
Header Orientation	-
Plug Wire Entry	180°
Termination Style	Screwless - Push-In Spring
Mounting Type	Free Hanging (In-Line)
Current - IEC	10A
Voltage - IEC	320 V
Current - UL	10 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	14-28 AWG
Wire Gauge or Range - mm²	0.08-1.5mm²
Color	Gray
Temperature Range - Operating	-60°C ~ 100°C
Contact Mating Finish	Tin
Features	-
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	6-7mm
Contact Material	Electrolytic Copper
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Tail Length	-
Insulation Height	0.528" (13.40mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1364618-734-302
Ultra Librarian 3D Model	Ultra Librarian 734-302 CAD Model

Alternative Products

Description

The 734-302 is a plug terminal block header manufactured by WAGO Corporation.

Category: Connectors, Interconnects
Temperature Range: -60°C to 100°C
Package: Box
Status: Active
Mounting: Free Hanging (In-Line)
Termination Style: Screwless Push-In Spring
Current Rating: 10A
Voltage Rating: 300V
