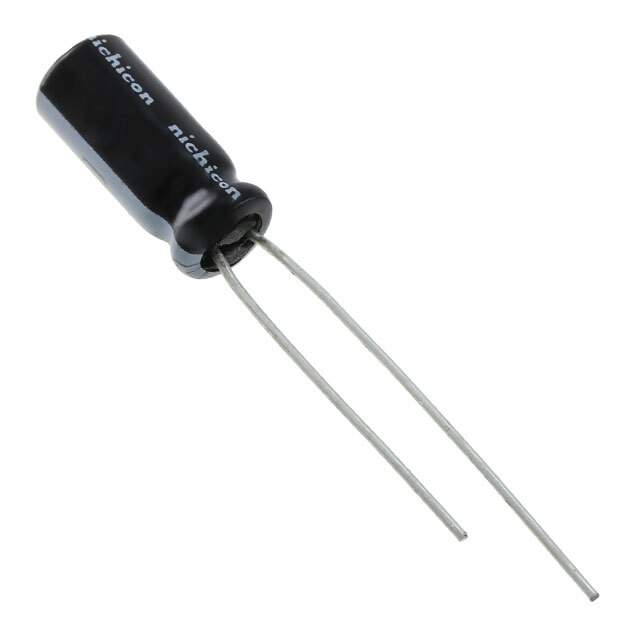

UVZ1C101MDD Real Image
Same model may have multiple batches, images only for reference.

UVZ1C101MDD

Part No UVZ1C101MDD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 16V RADIAL / 100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Nichicon
Packaging Bulk
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 115 mA @ 120 Hz
Ripple Current @ High Frequency 172.5 mA @ 10 kHz
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 493-1283
Standard Package 6,000
Win Source Part Number 1331449-UVZ1C101MDD
Ultra Librarian 3D Model Ultra Librarian UVZ1C101MDD CAD Model

Description

The Nichicon electronic component has a part number of 1331449-UVZ1C101MDD and is an aluminum electrolytic capacitor.

  • Packaging: Bulk
  • Size/Dimension: 0.197" Dia (5.00mm)
  • Application: General Purpose
  • Maximum Seated Height: 0.492" (12.50mm)
  • Mounting Type: Through Hole
  • Capacitance: 100 µF
  • Tolerance: ±20%
  • Voltage Rated: 16 V
  • Lead Spacing: 0.079" (2.00mm)
  • Lifetime @ Temp: 1000 Hrs @ 105°C
  • Polar: Yes
  • Operating Temperature: -55°C to 105°C
  • Case/Package: Radial, Can
  • ECCN: EAR99.22.0020
  • Product Status: Not for New Designs
  • ROHS3 Compliant: Yes
  • Ripple Current @ Low Frequency: 115 mA @ 120 Hz
  • Ripple Current @ High Frequency: 172.5 mA @ 10 kHz
