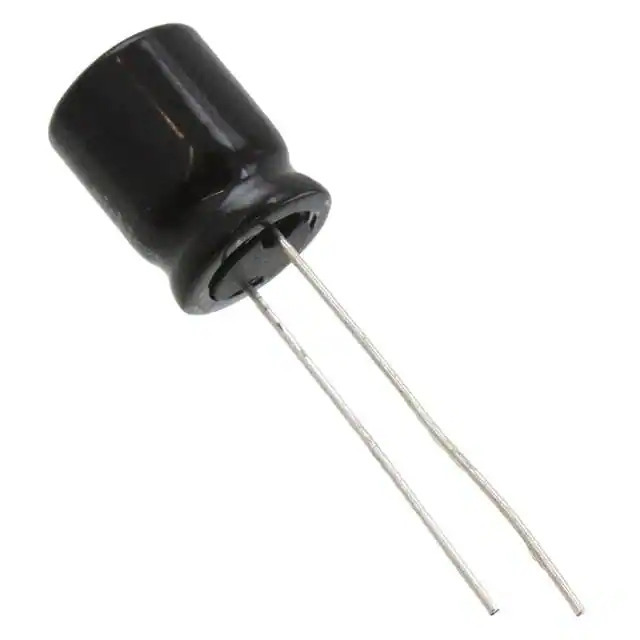

Same model may have multiple batches, images only for reference.

UVR1A102MPD

Name: UVR1A102MPD
Brand: Nichicon
SKU: 1355731
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UVR1A102MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 10V RADIAL / 1000 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVR
Package	Bulk
Product Status	Not For New Designs
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	10 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	650 mA @ 120 Hz
Ripple Current @ High Frequency	747.5 mA @ 10 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1355731-UVR1A102MPD
Ultra Librarian 3D Model	Ultra Librarian UVR1A102MPD CAD Model

Description

The UVR1A102MPD is a radial aluminum electrolytic capacitor from Nichicon's UVR series.

Capacitance: 1000 μF
Voltage Rating: 10 V
Temperature Range: -40°C to 85°C
Application: General Purpose
Tolerance: ±20%
Ripple Current (Low Frequency): 650 mA @ 120 Hz
Ripple Current (High Frequency): 747.5 mA @ 10 kHz
Size: 0.394" diameter
Height: 0.492"
Packaging: Bulk
Lead Spacing: 0.197"
Lifetime: 2000 hours @ 85°C
Polarization: Polarized
