Same model may have multiple batches, images only for reference.

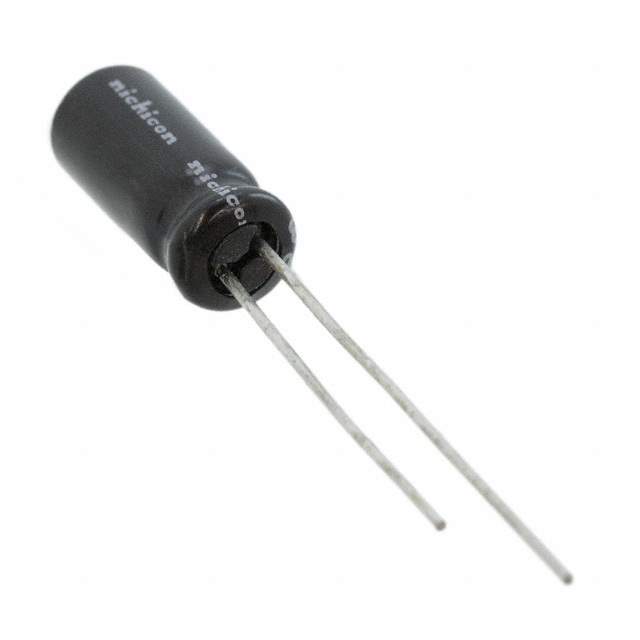

UVP1A470MDD Real Image
Same model may have multiple batches, images only for reference.

UVP1A470MDD

Part No UVP1A470MDD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 10V RADIAL / 47 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Datasheet
UVP1A470MDD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVP
Package Bulk
Product Status Obsolete
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Bi-Polar
Applications General Purpose
Ripple Current @ Low Frequency 76 mA @ 120 Hz
Ripple Current @ High Frequency 152 mA @ 10 kHz
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 6,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1349198-UVP1A470MDD
Ultra Librarian 3D Model Ultra Librarian UVP1A470MDD CAD Model

Description

The Nichicon UVP series aluminum electrolytic capacitor is a reliable general-purpose component designed for a variety of applications. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Capacitance: 47 µF
  • Voltage Rating: 10 V
  • Polarization: Polarized
  • Tolerance: ±20%
  • Mounting Type: Through Hole
  • Ripple Current (Low Frequency): 76 mA
  • Ripple Current (High Frequency): 152 mA
  • Lifetime: 2000 hours @ 85°C
  • ESR (Equivalent Series Resistance): Not Specified
  • Package/Case: Radial, Can
  • Lead Spacing: 0.079" (2.00mm)
  • Size/Dimension: 0.197" Dia (5.00mm)
  • Height Seated (Max): 0.492" (12.50mm)
  • Series: UVP
  • Lifecycle Status: Obsolete
