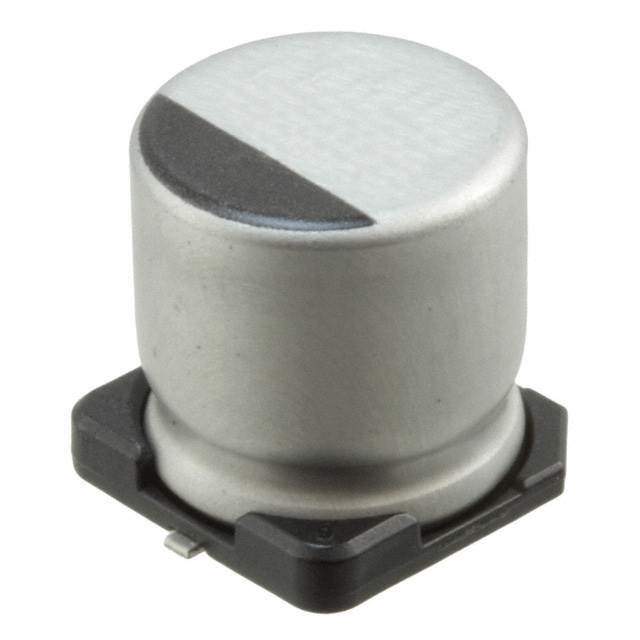

Same model may have multiple batches, images only for reference.

UUX1C331MNL1GS

Name: UUX1C331MNL1GS
Brand: Nichicon
SKU: 807760
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UUX1C331MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 16V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Nichicon
Packaging	Reel
Capacitance	330μF
Tolerance	±20%
Voltage - Rated	16V
Lifetime at Temp.	2000 Hrs at 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	Use For General
Ripple Current at Low Frequency	441mA at 120Hz
Ripple Current at High Frequency	573.3mA at 10kHz
Dimension	0.394" Dia (10.00mm)
Height - Seated (Maximum)	0.413" (10.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Style	SMD
Manufacturer Package	Radial, Can - SMD
Manufacturer Pack Quantity	500
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	807760-UUX1C331MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UUX1C331MNL1GS CAD Model

Description

The Nichicon 807760-UUX1C331MNL1GS capacitor is a surface mount aluminum electrolytic capacitor.

Capacitance: 330μF
Voltage Rating: 16V
Tolerance: ±20%
Ripple Current: 441mA @ 120Hz, 573.3mA @ 10kHz
Polarization: Yes
Package: Radial, Can - SMD
General Use: Yes
Temperature Range: -55°C to 105°C
Lifetime: 2000 hours @ 105°C
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
Packaging: Reel
Quantity: 500
