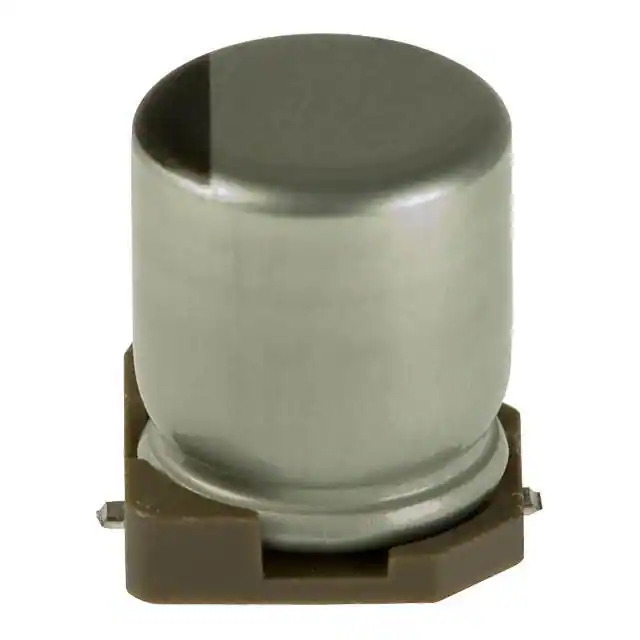

UUD1H330MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UUD1H330MCL1GS

Part No UUD1H330MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 33UF 20% 50V SMD / 33 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UUD1H330MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUD
Package Tape & Reel
Product Status Active
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 92.5 mA @ 120 Hz
Ripple Current @ High Frequency 185 mA @ 100 kHz
Impedance 680 mOhms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360183-UUD1H330MCL1GS
Ultra Librarian 3D Model Ultra Librarian UUD1H330MCL1GS CAD Model

Description

The UUD1H330MCL1GS is a radial, surface mount aluminum electrolytic capacitor from Nichicon's UUD series. Nichicon

  • Series: UUD
  • Capacitance: 33 μF
  • Voltage Rating: 50 V
  • Temperature Range: -55°C to 105°C
  • Application: Automotive
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 92.5 mA @ 120 Hz
  • Ripple Current (High Frequency): 185 mA @ 100 kHz
  • Size (Diameter): 0.248"
  • Seated Height: 0.315"
  • Mounting Type: Surface Mount
  • Surface Mount Land Size: 0.260" x 0.260"
  • AEC-Q200 Rated: Yes
  • Lifetime: 2000 hours @ 105°C
  • Polarization: Polarized
  • Impedance: 680 mOhms
