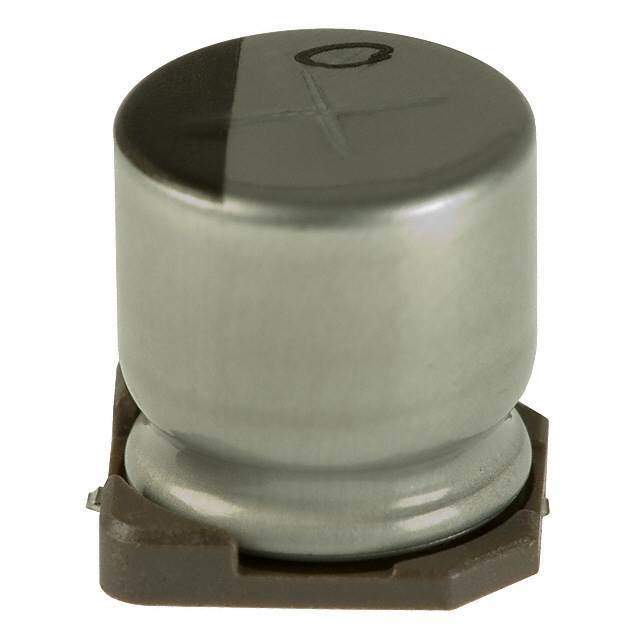

UUD1H221MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UUD1H221MNL1GS

Part No UUD1H221MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 50V SMD / 220 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUD
Package Tape & Reel
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 335 mA @ 120 Hz
Ripple Current @ High Frequency 670 mA @ 100 kHz
Impedance 180 mOhms
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-2308-6,Q4626452,493-2308-2,493-2308-1
Standard Package 500
Win Source Part Number 958331-UUD1H221MNL1GS
Ultra Librarian 3D Model Ultra Librarian UUD1H221MNL1GS CAD Model

Description

The Nichicon UUD1H221MNL1GS is an aluminum electrolytic capacitor that falls under the category of capacitors. The product comes in tape and reel packaging with a standard package of 500 units.

  • Mounting Type: SMD (SMT)
  • Capacitance: 220 μF
  • Tolerance: ±20%
  • Voltage Rated: 50 V
  • Impedance: 180 mOhms
  • Ripple Current: 335 mA @ 120 Hz and 670 mA @ 100 kHz
  • Polar: True
  • Temperature Range: -55°C ~ 105°C
