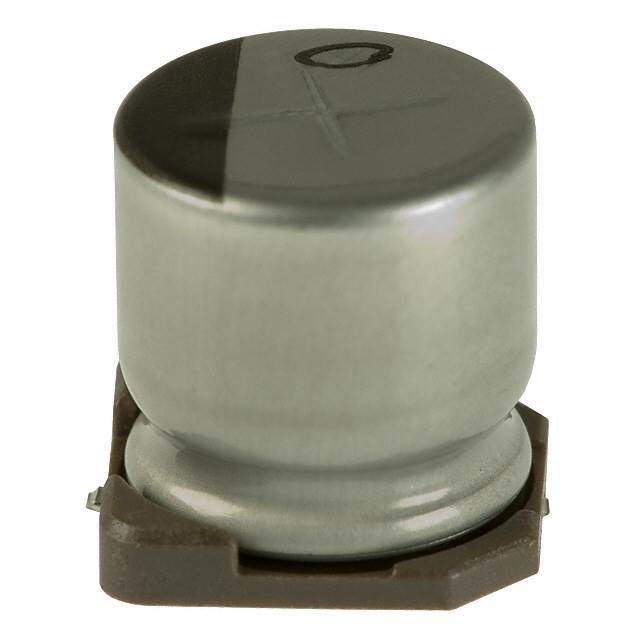

UUD1H151MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UUD1H151MNL1GS

Part No UUD1H151MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 150UF 20% 50V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nichicon
Packaging Reel
Capacitance 150μF
Tolerance ±20%
Voltage - Rated 50V
Lifetime at Temp. 5000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications Use For General
Ripple Current at Low Frequency 335mA at 120Hz
Ripple Current at High Frequency 670mA at 100kHz
Impedance 180 mOhms
Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806586-UUD1H151MNL1GS
Ultra Librarian 3D Model Ultra Librarian UUD1H151MNL1GS CAD Model

Description

The Nichicon UUD1H151MNL1GS is a surface mount aluminum electrolytic capacitor.

  • Capacitance: 150μF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • Impedance: 180 mOhms
  • Polarization: Polar
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Temperature Range: -55°C to 105°C
  • Packaging: Radial, can - SMD
  • Height: 0.394" (10.00mm)
  • Ripple Current: 335mA @ 120Hz, 670mA @ 100kHz
  • Manufacturer Package: Reel
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Manufacturer Pack Quantity: 500
  • MSL Level: 1 (Unlimited)
  • Lifetime @ Temperature: 5000 Hrs @ 105°C
