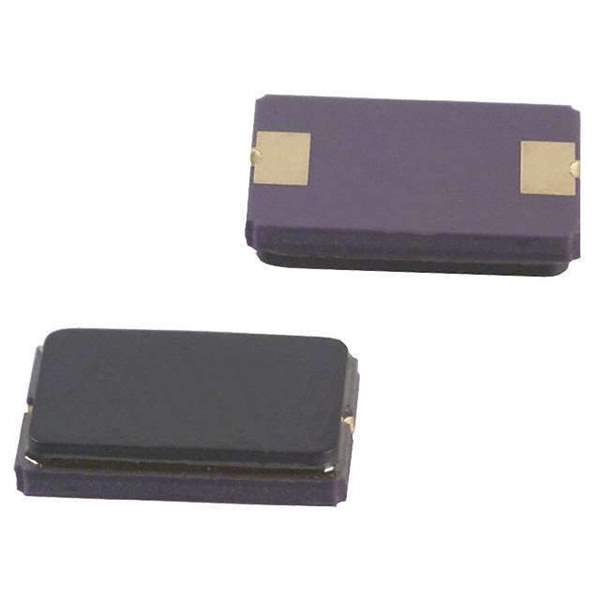

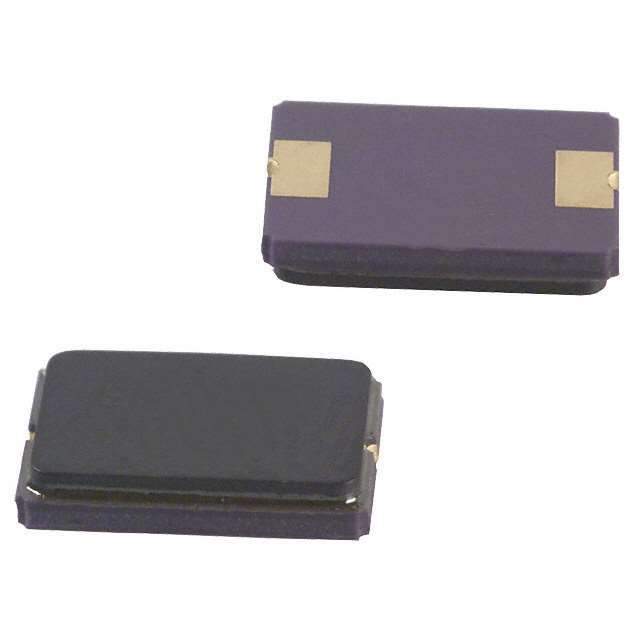

ECS-330-S-20A-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-330-S-20A-TR

Part No ECS-330-S-20A-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 33.0000MHZ SERIES SMD / Crystal 33MHz ±30ppm (Tol) ±50ppm (Stability) Series FUND 40Ohm 2-Pin CSMD T/R
Datasheet
ECS-330-S-20A-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer ECS Inc.
Series CSM-8
Type MHz Crystal
Frequency 33MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance Series
ESR (Equivalent Series Resistance) 80 Ohm
Operating Mode 3rd Overtone
Operating Temperature Range -10°C ~ 70°C
Mounting SMD
Package 2-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Maximum) 0.067" (1.70mm)
Win Source Part Number 771079-ECS-330-S-20A-TR
Popularity Medium
Supply and Demand Status Limited
Introduction Date January 19, 1999
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ECS-330-S-20A-TR CAD Model

Description

The ECS Inc. MHz crystal with Win Source Part Number 771079-ECS-330-S-20A-TR is a part of the CSM-8 series.

  • Operating Temperature Range: -10°C to 70°C
  • Frequency: 33MHz
  • Supply and Demand Status: Limited
  • Package: 2-SMD, No Lead
  • Introduction Date: January 19, 1999
  • Estimated EOL Date: 2024
  • HTSUS: 8541.60.0030
