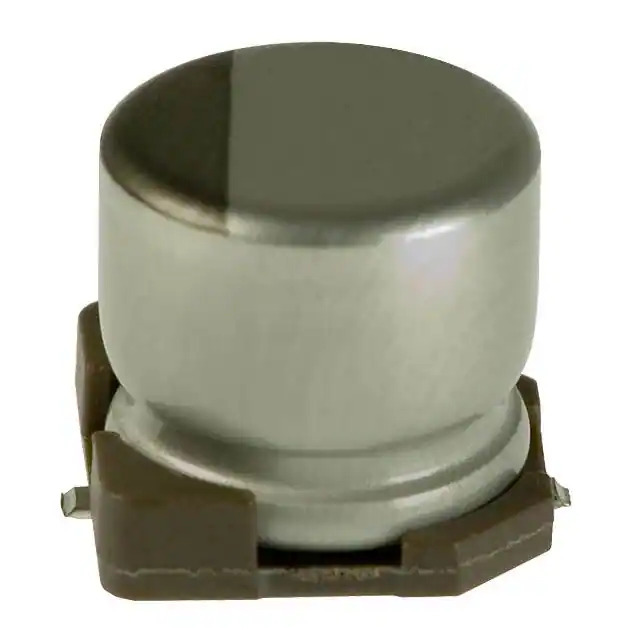

UUD1H150MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UUD1H150MCL1GS

Part No UUD1H150MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 15UF 20% 50V SMD / 15 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UUD1H150MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUD
Package Tape & Reel
Product Status Active
Capacitance 15 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 82.5 mA @ 120 Hz
Ripple Current @ High Frequency 165 mA @ 100 kHz
Impedance 880 mOhms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360351-UUD1H150MCL1GS
Ultra Librarian 3D Model Ultra Librarian UUD1H150MCL1GS CAD Model

Description

The UUD series aluminum electrolytic capacitor from Nichicon is a reliable component for automotive applications.

  • Capacitance: 15µF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • Mounting Type: Surface Mount
  • Package: Radial, Can-Style
  • Lifetime @ 105°C: 2000 hours
  • Ripple Current @ 120Hz: 82.5mA
  • Ripple Current @ 100kHz: 165mA
  • Polarization: Polarized
  • Impedance: 880mOhms
  • Size: 0.248" diameter
  • Height: 0.240"
  • Compliance: AEC-Q200
