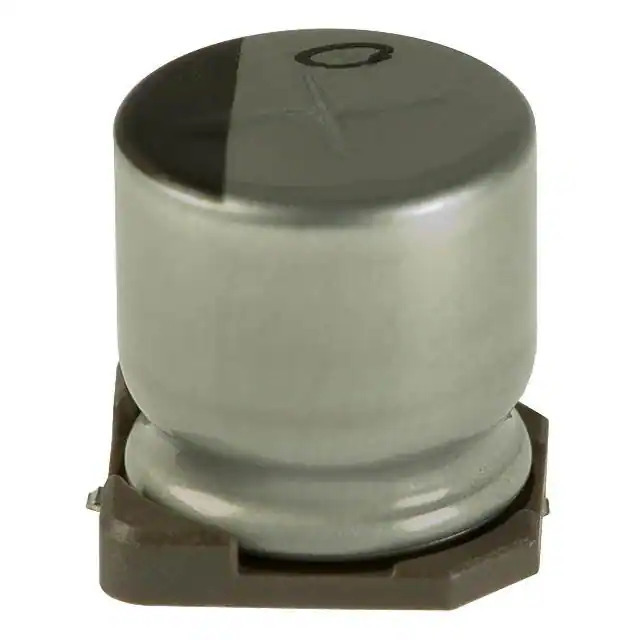

Same model may have multiple batches, images only for reference.
UUD1A681MNL1GS Nichicon
Same model may have multiple batches, images only for reference.

UUD1A681MNL1GS

Part No UUD1A681MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 10V SMD / 680 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UUD1A681MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUD
Package Tape & Reel
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 335 mA @ 120 Hz
Ripple Current @ High Frequency 670 mA @ 100 kHz
Impedance 90 mOhms
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360311-UUD1A681MNL1GS
Ultra Librarian 3D Model Ultra Librarian UUD1A681MNL1GS CAD Model

Description

The UUD1A681MNL1GS is a surface mount aluminum electrolytic capacitor manufactured by Nichicon.

  • Series: UUD
  • Application: Automotive
  • Capacitance: 680 µF
  • Voltage Rating: 10 V
  • Temperature Range: -55°C to 105°C
  • Lifetime: 5000 hours @ 105°C
  • Package: Radial, Can - SMD
  • Mounting: Surface Mount
  • Size/Dimension: 0.394" Dia (10.00mm)
  • Height: 0.413" (10.50mm)
  • Ripple Current (120 Hz): 335 mA
  • Ripple Current (100 kHz): 670 mA
  • REACH Regulations: Unaffected
  • ECCN: EAR99
  • Polarization: Yes
  • Impedance: 90 mOhms
