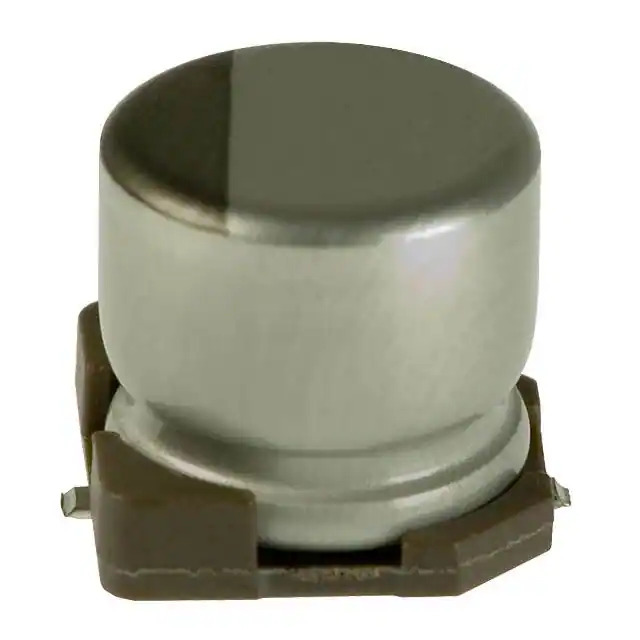

UUD1A101MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UUD1A101MCL1GS

Part No UUD1A101MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 10V SMD / 100 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UUD1A101MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUD
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 115 mA @ 120 Hz
Ripple Current @ High Frequency 230 mA @ 100 kHz
Impedance 440 mOhms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360160-UUD1A101MCL1GS
Ultra Librarian 3D Model Ultra Librarian UUD1A101MCL1GS CAD Model

Description

The Nichicon UUD1A101MCL1GS is a radial, surface mount aluminum electrolytic capacitor from.

  • Series: UUD
  • Capacitance: 100 μF
  • Voltage Rating: 10 V
  • Application: Automotive
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Size: 0.248" diameter
  • Height: 0.240"
  • Mounting Type: Surface mount
  • Package: Tape and reel
  • Equivalent Series Resistance (ESR): Low
  • Ripple Current: 115 mA @ 120 Hz, 230 mA @ 100 kHz
  • AEC-Q200: Compliant
  • REACH: Unaffected
