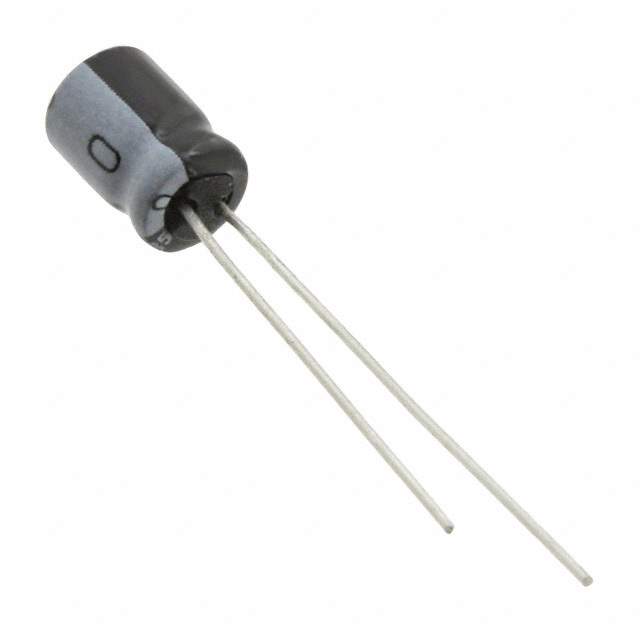

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Packaging Bulk
Status Active
Capacitance 100μF
Tolerance ±20%
Voltage Rating 6.3V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 78mA @ 120Hz
Ripple Current - High Frequency 117mA @ 10kHz
Lead Spacing 0.079" (2.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Mounting Through Hole
Dimension Radial, Can
Win Source Part Number 043527-USR0J101MDD
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian USR0J101MDD CAD Model

Description

This Nichicon capacitor is a general-purpose component that is capable of handling a voltage rating of 6.3V.

  • Voltage Rating: 6.3V
  • Capacitance: 100μF
  • Tolerance: ±20%
  • Lead Spacing: 0.079" (2.00mm)
  • Polarization: Polarized
  • Ripple Current (Low Frequency): 78mA @ 120Hz
  • Ripple Current (High Frequency): 117mA @ 10kHz
  • Type: Radial, Can
  • Height: 0.315" (8.00mm) when seated
  • Lifetime: 2000 hours @ 85°C
  • Mounting: Through-hole
  • Surface Mount Land Size: Not applicable
  • Category: Capacitors
  • Status: Active
  • Supply and Demand Status: Limited
