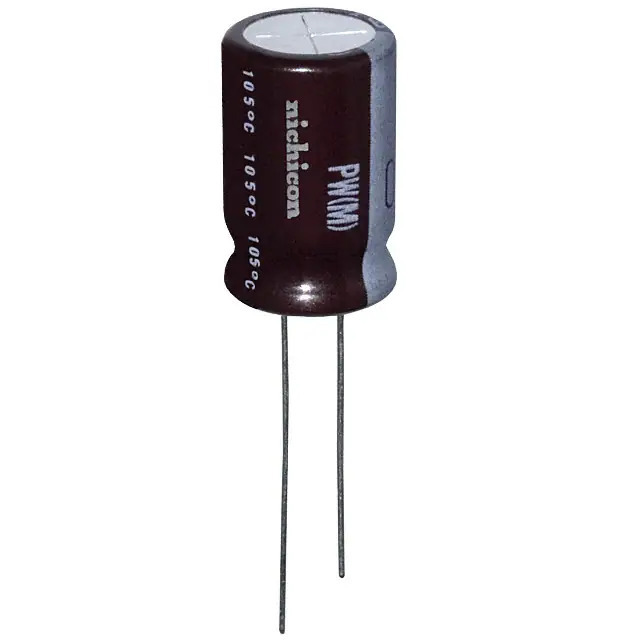

Same model may have multiple batches, images only for reference.

UPW2W4R7MHD

Name: UPW2W4R7MHD
Brand: Nichicon
SKU: 1357923
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPW2W4R7MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 4.7UF 20% 450V RADIAL / 4.7 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Datasheet	UPW2W4R7MHD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Not For New Designs
Capacitance	4.7 µF
Tolerance	±20%
Voltage - Rated	450 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	49 mA @ 120 Hz
Ripple Current @ High Frequency	78.4 mA @ 10 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.787" (20.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357923-UPW2W4R7MHD
Ultra Librarian 3D Model	Ultra Librarian UPW2W4R7MHD CAD Model

Description

The UPW2W4R7MHD is an aluminum electrolytic capacitor from Nichicon's UPW series.

Capacitance: 4.7 μF
Voltage: 450V
Tolerance: ±20%
Application: General Purpose
Ripple Current (Low Frequency): 49 mA @ 120 Hz
Ripple Current (High Frequency): 78.4 mA @ 10 kHz
Lead Spacing: 5.00mm
Size: 0.492" diameter
Mounting: Through-Hole
Lifetime: 7000 hours @ 105°C
Polarization: Polar
Package: Radial, Can
Status: Not Recommended for New Designs
