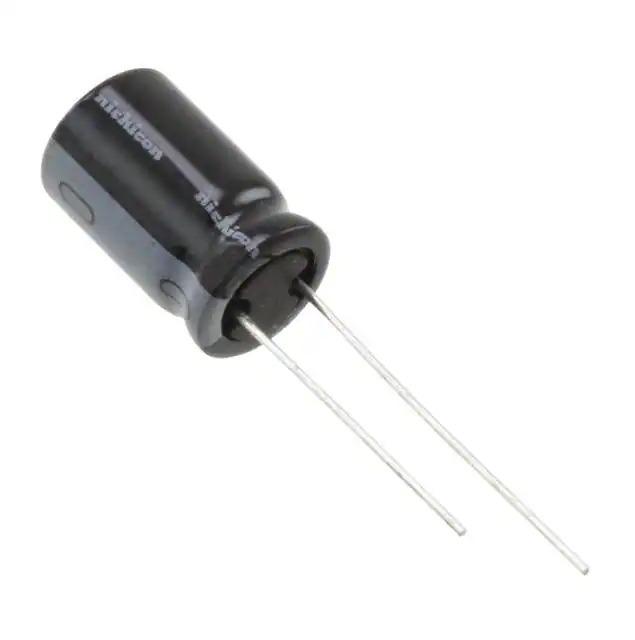

UHW1V471MPD Nichicon
Same model may have multiple batches, images only for reference.

UHW1V471MPD

Part No UHW1V471MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 35V RADIAL / 470 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet
UHW1V471MPD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHW
Package Bulk
Product Status Not For New Designs
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1 A @ 120 Hz
Ripple Current @ High Frequency 2 A @ 100 kHz
Impedance 30 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357745-UHW1V471MPD
Ultra Librarian 3D Model Ultra Librarian UHW1V471MPD CAD Model

Description

The UHW1V471MPD is a radial, can-type aluminum electrolytic capacitor from Nichicon's UHW series.

  • Capacitance: 470 µF
  • Tolerance: ±20%
  • Rated Voltage: 35 V
  • Application: General Purpose
  • Operating Temperature: -40°C to 105°C
  • Ripple Current (Low Frequency): 1 A @ 120 Hz
  • Ripple Current (High Frequency): 2 A @ 100 kHz
  • Lead Spacing: 5.00mm
  • Diameter: 10.00mm
  • Polarization: Polarized
  • Seated Height (Max): 17.50mm
  • Mounting: Through Hole
  • Lifetime @ 105°C: 10,000 hours
  • Packaging: Bulk
  • Design Status: Not for New Designs
