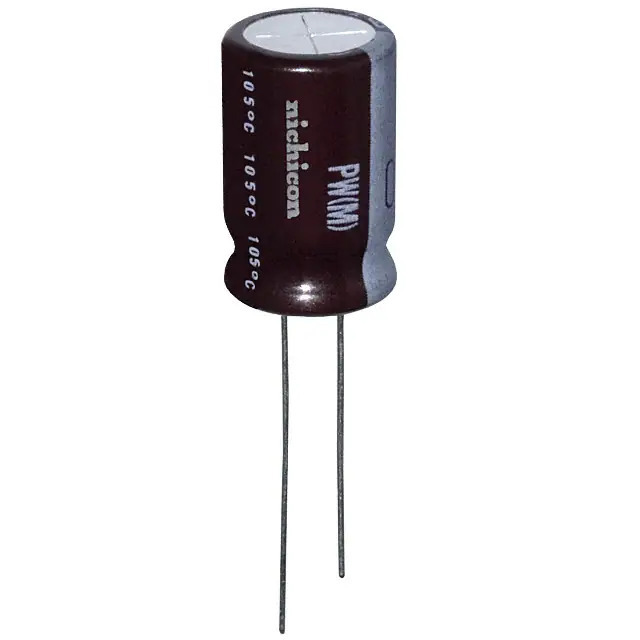

Same model may have multiple batches, images only for reference.

UPW2C330MHD

Name: UPW2C330MHD
Brand: Nichicon
SKU: 1358262
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPW2C330MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 33UF 20% 160V RADIAL / 33 µF 160 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Datasheet	UPW2C330MHD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Last Time Buy
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	160 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	180 mA @ 120 Hz
Ripple Current @ High Frequency	288 mA @ 10 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.787" (20.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358262-UPW2C330MHD
Ultra Librarian 3D Model	Ultra Librarian UPW2C330MHD CAD Model

Description

The UPW2C330MHD is an aluminum electrolytic capacitor from Nichicon.

Series: UPW
Capacitance: 33 µF
Voltage Rating: 160 V
Application: General Purpose
Operating Temperature: -40°C to 105°C
Lifetime: 7000 hours @ 105°C
Package: Radial, Can
Mounting Type: Through Hole
Lead Spacing: 5.00mm
Size: 12.50mm Diameter
Ripple Current (Low Frequency): 180 mA @ 120 Hz
Ripple Current (High Frequency): 288 mA @ 10 kHz
REACH: Unaffected
ECCN: EAR99
