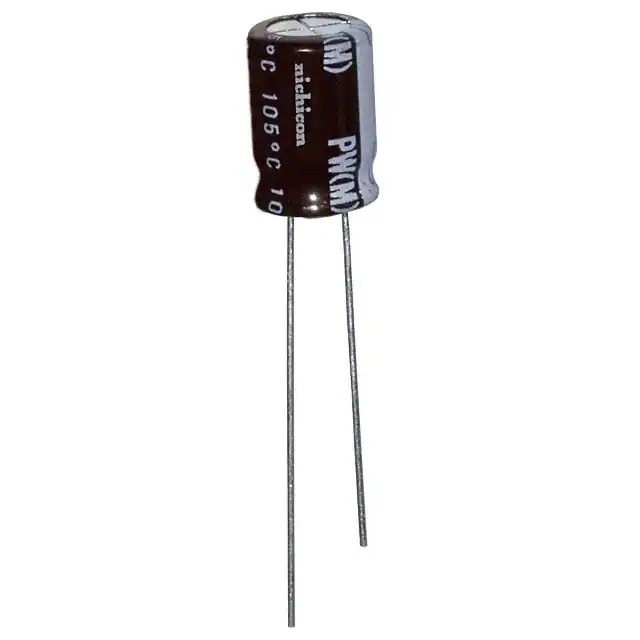

Same model may have multiple batches, images only for reference.
UPW2A220MPD Nichicon
Same model may have multiple batches, images only for reference.

UPW2A220MPD

Part No UPW2A220MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 100V RADIAL / 22 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Datasheet
UPW2A220MPD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Not For New Designs
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 69 mA @ 120 Hz
Ripple Current @ High Frequency 230 mA @ 100 kHz
Impedance 680 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.453" (11.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357878-UPW2A220MPD
Ultra Librarian 3D Model Ultra Librarian UPW2A220MPD CAD Model

Description

The Nichicon UPW2A220MPD is a 22μF aluminum electrolytic capacitor with a voltage rating of 100V. Nichicon

  • Capacitance: 22μF
  • Voltage Rating: 100V
  • Temperature Range: -55°C to 105°C
  • Capacitance Tolerance: ±20%
  • Mounting Type: Through Hole
  • Package: Radial, Can
  • Height: 11.50mm
  • Diameter: 8.00mm
  • Ripple Current: 69mA @ 120Hz, 230mA @ 100kHz
  • Lifetime: 3000 hours @ 105°C
