Same model may have multiple batches, images only for reference.

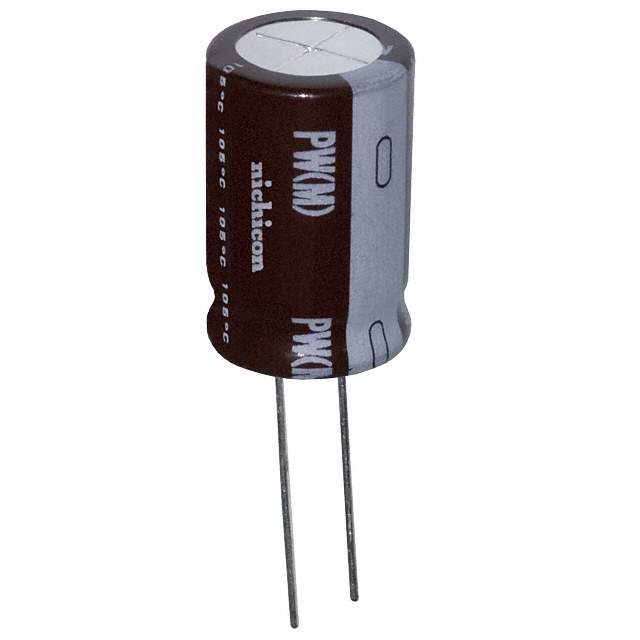

UPW1V222MHD6 Real Image
Same model may have multiple batches, images only for reference.

UPW1V222MHD6

Part No UPW1V222MHD6
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 35V RADIAL / 2200 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Not For New Designs
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.329 A @ 120 Hz
Ripple Current @ High Frequency 2.74 A @ 100 kHz
Impedance 20 mOhms
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-1880,Q4744294
Standard Package 300
Win Source Part Number 984885-UPW1V222MHD6
Ultra Librarian 3D Model Ultra Librarian UPW1V222MHD6 CAD Model

Description

The Nichicon UPW series aluminum electrolytic capacitors are designed for general-purpose applications.

  • Capacitance: 2200 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Package: Radial, can
  • Lead Spacing: 0.295" (7.50mm)
  • Impedance: 20 mOhms
  • Lifetime: 8000 Hrs @ 105°C
  • Polarization: Polarized
  • Ripple Current: 2.329 A @ 120 Hz
  • Ripple Current: 2.74 A @ 100 kHz
  • Dimension: 0.709" Dia (18.00mm)
  • Operating Temperature: -55°C to 105°C
