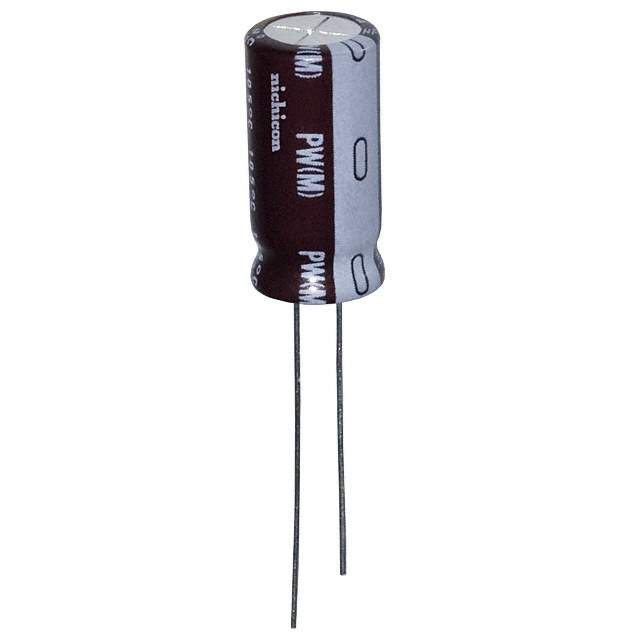

Same model may have multiple batches, images only for reference.

UPW1E681MPD

Name: UPW1E681MPD
Brand: Nichicon
SKU: 964953
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPW1E681MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 680UF 20% 25V RADIAL / 680 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Not For New Designs
Capacitance	680 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	915 mA @ 120 Hz
Ripple Current @ High Frequency	1.22 A @ 100 kHz
Impedance	52 mOhms
Lead Spacing	0.197" (5.00mm)
Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.787" (20.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-1829
Standard Package	1,400
Win Source Part Number	964953-UPW1E681MPD
Ultra Librarian 3D Model	Ultra Librarian UPW1E681MPD CAD Model

Description

The Nichicon UPW1E681MPD is a capacitor that falls under the category of aluminum electrolytic capacitors.

Application: General Purpose
Package: Radial, Can
Capacitance: 680 µF
Voltage Rating: 25V
Tolerance: ±20%
Lead Spacing: 0.197" (5.00mm)
Lifespan: 5000 Hrs @ 105°C
Cross-Reference Alternative: Yes
