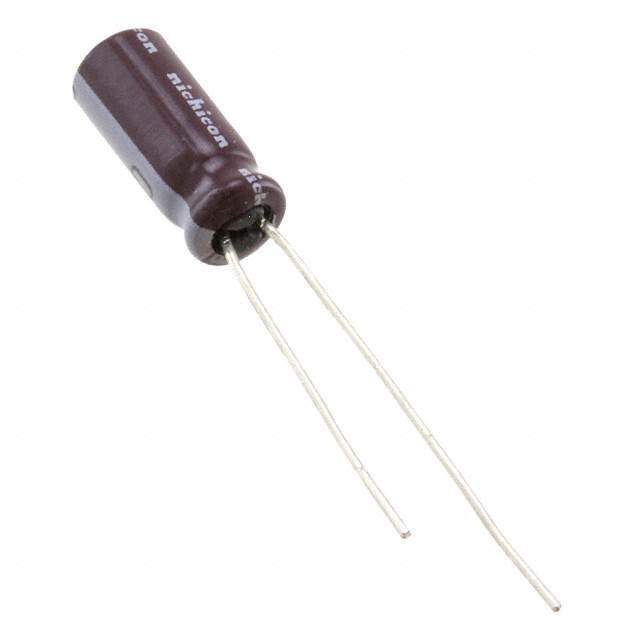

UPW1E470MDD1TD Real Image
Same model may have multiple batches, images only for reference.

UPW1E470MDD1TD

Part No UPW1E470MDD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 25V RADIAL / 47 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Cut Tape (CT),Tape & Box (TB)
Product Status Not For New Designs
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 54 mA @ 120 Hz
Ripple Current @ High Frequency 180 mA @ 100 kHz
Impedance 600 mOhms
Lead Spacing 0.098" (2.50mm)
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-11352-3,493-11352-1
Standard Package 2,000
Win Source Part Number 984884-UPW1E470MDD1TD
Ultra Librarian 3D Model Ultra Librarian UPW1E470MDD1TD CAD Model

Description

The Nichicon UPW1E470MDD1TD is an aluminum electrolytic capacitor manufactured by Nichicon.

  • Series: UPW
  • Capacitance: 47 microfarads
  • Voltage Rating: 25 volts
  • Lifespan: 2000 hours @ 105 degrees Celsius
  • Mounting: Through-hole
  • Packaging: Radial can
