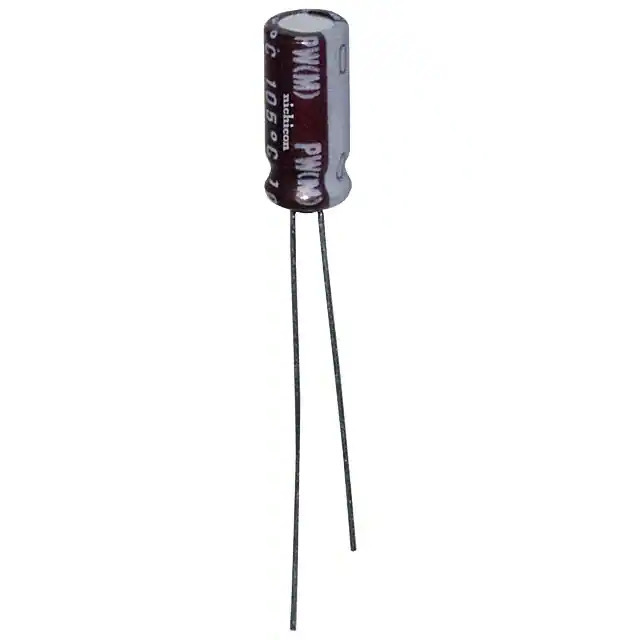

Same model may have multiple batches, images only for reference.

UPW1E100MDD

Name: UPW1E100MDD
Brand: Nichicon
SKU: 1357661
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPW1E100MDD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 25V RADIAL / 10 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet	UPW1E100MDD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Obsolete
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	54 mA @ 120 Hz
Ripple Current @ High Frequency	180 mA @ 100 kHz
Impedance	600 mOhms
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357661-UPW1E100MDD
Ultra Librarian 3D Model	Ultra Librarian UPW1E100MDD CAD Model

Description

The UPW1E100MDD is a radial, through-hole aluminum electrolytic capacitor from Nichicon.

Capacitance: 10 μF
Voltage Rating: 25 V
Temperature Range: -55°C to 105°C
Application: General Purpose
Ripple Current (Low Freq): 54 mA @ 120 Hz
Ripple Current (High Freq): 180 mA @ 100 kHz
Series: UPW
Polarization: Polarized
Tolerance: ±20%
Size: 0.197" Dia x 0.433" H
Lifetime: 2000 hours @ 105°C
Packaging: Bulk
Mounting Type: Through Hole
Lead Spacing: 0.079" (2.00mm)
Impedance: 600 mOhms
Status: Obsolete
