Same model may have multiple batches, images only for reference.

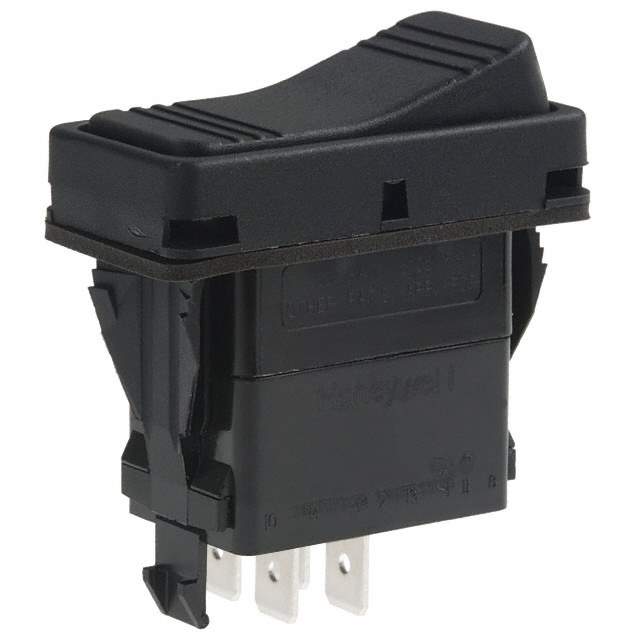

SRN91-22BB Real Image
Same model may have multiple batches, images only for reference.

SRN91-22BB

Part No SRN91-22BB
Manufacturer Honeywell
Catalog Rocker Switches
Description SWITCH ROCKER DPST 15A 125V / Rocker Switch DPST 15A (AC) 125 V Panel Mount, Snap-In
Datasheet
SRN91-22BB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SRN
Package Bulk
Product Status Obsolete
Mounting Type Panel Mount, Snap-In
Circuit DPST
Switch Function On-Off
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking No Marking
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection IP68 - Dust Tight, Waterproof
Panel Cutout Dimensions Rectangular - 36.83mm x 20.82mm
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life 150,000 Cycles
Electrical Life 100,000 Cycles
Other Names 480-2145
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233229-SRN91-22BB
Ultra Librarian 3D Model Ultra Librarian SRN91-22BB CAD Model

Description

The Honeywell SRN Series Rocker Switch is a DPST switch with an on-off switch function.

  • Circuit: DPST
  • Switch Function: on-off
  • Termination Style: Quick connect termination style of 0.250”
  • Mounting: Panel mounted with a snap-in feature
  • Voltage Rating: 125V AC
  • Current Rating: 15A
  • Actuator Type: Concave (curved)
  • Ingress Protection: IP68
  • Mechanical Life: 150,000 cycles
  • Electrical Life: 100,000 cycles
  • Panel Cutout Dimension: 36.83mm x 20.82mm
  • Color: Black
