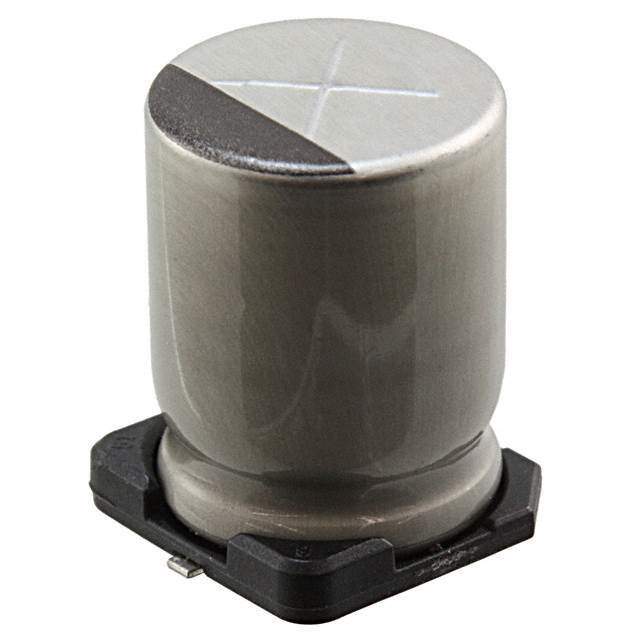

Same model may have multiple batches, images only for reference.

ULV2G100MNL1GS

Name: ULV2G100MNL1GS
Brand: Nichicon
SKU: 1336873
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ULV2G100MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 400V SMD / 10 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - SMD 10000 Hrs @ 105°C
Datasheet	ULV2G100MNL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	ULV
Package	Tape & Reel
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	400 V
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	55 mA @ 120 Hz
Ripple Current @ High Frequency	88 mA @ 10 kHz
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.571" (14.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	400
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1336873-ULV2G100MNL1GS
Ultra Librarian 3D Model	Ultra Librarian ULV2G100MNL1GS CAD Model

Description

The Nichicon ULV2G100MNL1GS is an aluminum electrolytic capacitor with a capacitance of 10 µF and a voltage rating of 400V. Nichicon

Capacitance: 10 µF
Voltage Rating: 400V
Tolerance: ±20%
Mounting Type: Surface Mount
Standard Package: 400
Size: 0.394" Dia (10.00mm)
Height: 0.571" (14.50mm)
Polarization: Polarized
Series: ULV
Application: General Purpose
Operating Temperature Range: -40°C to 105°C
